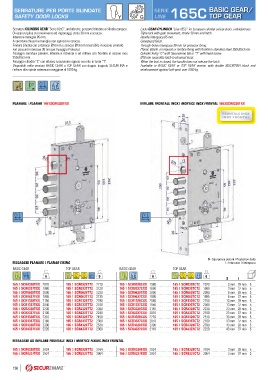

SERIE
SERRATURE PER PORTE BLINDATE LINE 165C BASIC GEAR/
SAFETY DOOR LOCKS Y G TOP GEAR

Serrature CILINDRO GEAR “Serie 165C”, ambidestre, per porte blindate a cilindro europeo. Locks GEAR CYLINDER “Line 165C” for European cylinder safety doors, ambidextrous.
Chiusura triplice con movimento ad ingranaggi, corsa 30 mm e scrocco. Triple lock with gear movement, stroke 30 mm and latch.
Interasse maniglia 85 mm. Handle interspace 85 mm.
A serratura chiusa la maniglia non sgancia lo scrocco. Galvanized finish.
Finitura zincata con catenacci Ø18 mm e scrocco Ø19 mm reversibile in acciaio cromato. Through-holes interspace 38 mm for protector fixing.
Fori passanti interasse 38 mm per fissaggio Protector. Planar, lateral on request or mortice fixing with frontal in stainless steel 350x35x3 mm.
Fissaggio serratura planare, laterale a richiesta o ad infilare con frontale in acciaio inox Cylinder fixing “C” with Securemme tab or “T” with head-screw.
350x35x3 mm. Ø19 mm reversible latch in chromed steel.
Fissaggio cilindro “C” con attacco securemme oppure con vite in testa “T”. When the lock is closed, the handle does not release the latch.
Disponibili nelle versioni BASIC GEAR o TOP GEAR con doppia trappola SECURTINA e Available in BASIC GEAR or TOP GEAR version with double SECURTINA block and
rinforzo alla spinta catenaccio maggiore di 1000 kg. reinforcement against bolt-push over 1000 kg.

C
P R T

PLANARE | PLANAR 1651SCR0328TXX INFILARE FRONTALE INOX | MORTICE INOX FRONTAL 1653SCR0328TXX

FRONTALE INOX
INOX FRONTAL

T T

S - Sporgenza pistoni | Projection bolts
FISSAGGIO PLANARE | PLANAR FIXING I - Interasse | Interspace
BASIC GEAR TOP GEAR BASIC GEAR TOP GEAR
C
g g g g
Y T T Y S I
165 1 SCR0328TXX 2070 165 1 SCR0328TT2 2210 165 1 SCR0328CXX 1980 165 1 SCR0328CT2 2070 3 mm 28 mm 5
165 1 SCR0337TXX 1980 165 1 SCR0337TT2 2120 165 1 SCR0337CXX 1890 165 1 SCR0337CT2 1980 3 mm 37 mm 5
165 1 SCR0628TXX 2090 165 1 SCR0628TT2 2230 165 1 SCR0628CXX 2000 165 1 SCR0628CT2 2090 6 mm 28 mm 5
165 1 SCR0637TXX 1995 165 1 SCR0637TT2 2135 165 1 SCR0637CXX 1905 165 1 SCR0637CT2 1995 6 mm 37 mm 5
165 1 SCR1328TXX 2150 165 1 SCR1328TT2 2290 165 1 SCR1328CXX 2060 165 1 SCR1328CT2 2150 13 mm 28 mm 5
165 1 SCR1337TXX 2040 165 1 SCR1337TT2 2180 165 1 SCR1337CXX 1950 165 1 SCR1337CT2 2040 13 mm 37 mm 5
165 1 SCR2328TXX 2230 165 1 SCR2328TT2 2380 165 1 SCR2328CXX 2140 165 1 SCR2328CT2 2230 23 mm 28 mm 5
165 1 SCR2337TXX 2100 165 1 SCR2337TT2 2240 165 1 SCR2337CXX 2010 165 1 SCR2337CT2 2100 23 mm 37 mm 5
165 1 SCR3328TXX 2310 165 1 SCR3328TT2 2450 165 1 SCR3328CXX 2220 165 1 SCR3328CT2 2310 33 mm 28 mm 5
165 1 SCR3337TXX 2160 165 1 SCR3337TT2 2300 165 1 SCR3337CXX 2070 165 1 SCR3337CT2 2160 33 mm 37 mm 5
165 1 SCR4328TXX 2390 165 1 SCR4328TT2 2530 165 1 SCR4328CXX 2300 165 1 SCR4328CT2 2390 43 mm 28 mm 5
165 1 SCR4337TXX 2220 165 1 SCR4337TT2 2300 165 1 SCR4337CXX 2110 165 1 SCR4337CT2 2220 43 mm 37 mm 5

FISSAGGIO AD INFILARE FRONTALE INOX | MORTICE FIXING INOX FRONTAL
165 3 SCR0328TXX 3024 165 3 SCR0328TT2 3164 165 3 SCR0328CXX 3024 165 3 SCR0328CT2 3164 3 mm 28 mm 5
165 3 SCR0337TXX 2924 165 3 SCR0337TT2 3064 165 3 SCR0337CXX 2924 165 3 SCR0337CT2 3064 3 mm 37 mm 5
