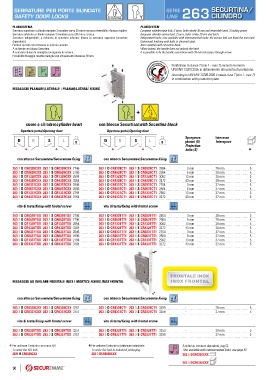

Page 92 - Catalogo MY 22 23

!
SERRATURE PER PORTE BLINDATE SERIE SECURTINA/
SAFETY DOOR LOCKS SECURTINA Y LINE 263 CILINDRO

PLURISISTEMA PLURISYSTEM
Serratura superiore a cilindro europeo 3 mandate corsa 30 mm e scrocco reversibile, chiusura triplice. European cylinder main lock, 3 turns, bolts stroke 30 mm and reversible latch, 3 locking points.
Serratura inferiore a cilindro europeo 2 mandate corsa 20 mm e scrocco. European cylinder service lock, 2 turns, bolts stroke 20 mm and latch.
Serrature indipendenti; a richiesta la serratura inferiore blocca la serratura superiore (serrature Independent locks; also available with interconnected locks: the service lock can block the main lock.
dipendenti). Galvanized finishing with bolts in chromed steel.
Finitura zincata con catenacci in acciaio cromato. Also available with Securtina block.
A richiesta con blocco Securtina. When locked, the handle does not unhook the latch.
A serratura chiusa la maniglia non sgancia lo scrocco. It is possible to fix the handle escutcheon with 38 mm interspace through screw.
Possibilità fissaggio rosetta maniglia con viti passanti interasse 38 mm.

Soddisfano la classe 7 (min 1 - max 7) secondo la norma
UNI ENV 12209:2005 in abbinamento alla piastra di protezione.
B P R 5 COMPLIENCES WITH EUROPEAN REGULATION According to UNI ENV 12209:2005 it meets class 7 (min 1 - max 7);
EN 12209:2005 in combination with protection plate.

FISSAGGIO PLANARE/LATERALE | PLANAR/LATERAL FIXING

!
+
Y Y SECURTINA
cuore a cilindro/cylinder heart con blocco Securtina/with Securtina block
Apertura porta/Opening door Apertura porta/Opening door
Sporgenza Interasse
D R S L g D R S L g pistoni (S) Interspace
Projection
* * * * bolts (S) *
C C
con attacco Securemme/Securemme fixing con attacco Securemme/Securemme fixing
263 1 D CR0328CXX 263 1 S CR0328CXX 2746 263 1 D CR0328CT1 263 1 S CR0328CT1 2854 3 mm 28 mm 5
263 1 D CR0628CXX 263 1 S CR0628CXX 2796 263 1 D CR0628CT1 263 1 S CR0628CT1 2904 6 mm 28 mm 5
263 1 D CR1328CXX 263 1 S CR1328CXX 2894 263 1 D CR1328CT1 263 1 S CR1328CT1 3002 13 mm 28 mm 5
263 1 D CR4328CXX 263 1 S CR4328CXX 3264 263 1 D CR4328CT1 263 1 S CR4328CT1 3372 43 mm 28 mm 5
263 1 D CR0337CXX 263 1 S CR0337CXX 2646 263 1 D CR0337CT1 263 1 S CR0337CT1 2754 3 mm 37 mm 5
263 1 D CR0637CXX 263 1 S CR0637CXX 2696 263 1 D CR0637CT1 263 1 S CR0637CT1 2804 6 mm 37 mm 5
263 1 D CR1337CXX 263 1 S CR1337CXX 2794 263 1 D CR1337CT1 263 1 S CR1337CT1 2902 13 mm 37 mm 5
263 1 D CR4337CXX 263 1 S CR4337CXX 3164 263 1 D CR4337CT1 263 1 S CR4337CT1 3272 43 mm 37 mm 5
vite di testa/fixing with frontal screw vite di testa/fixing with frontal screw
T T
263 1 D CR0328TXX 263 1 S CR0328TXX 2746 263 1 D CR0328TT1 263 1 S CR0328TT1 2854 3 mm 28 mm 5
263 1 D CR0628TXX 263 1 S CR0628TXX 2796 263 1 D CR0628TT1 263 1 S CR0628TT1 2904 6 mm 28 mm 5
263 1 D CR1328TXX 263 1 S CR1328TXX 2894 263 1 D CR1328TT1 263 1 S CR1328TT1 3002 13 mm 28 mm 5
263 1 D CR4328TXX 263 1 S CR4328TXX 3264 263 1 D CR4328TT1 263 1 S CR4328TT1 3372 43 mm 28 mm 5
263 1 D CR0337TXX 263 1 S CR0337TXX 2646 263 1 D CR0337TT1 263 1 S CR0337TT1 2754 3 mm 37 mm 5
263 1 D CR0637TXX 263 1 S CR0637TXX 2696 263 1 D CR0637TT1 263 1 S CR0637TT1 2804 6 mm 37 mm 5
263 1 D CR1337TXX 263 1 S CR1337TXX 2794 263 1 D CR1337TT1 263 1 S CR1337TT1 2902 13 mm 37 mm 5
263 1 D CR4337TXX 263 1 S CR4337TXX 3164 263 1 D CR4337TT1 263 1 S CR4337TT1 3272 43 mm 37 mm 5

FRONTALE INOX
FISSAGGIO AD INFILARE FRONTALE INOX | MORTICE FIXING INOX FRONTAL INOX FRONTAL

C C
con attacco Securemme/Securemme fixing con attacco Securemme/Securemme fixing
263 3 D CR0328CXX 263 3 S CR0328CXX 3251 263 3 D CR0328CT1 263 3 S CR0328CT1 3359 - 28 mm 5
263 3 D CR0337CXX 263 3 S CR0337CXX 3151 263 3 D CR0337CT1 263 3 S CR0337CT1 3259 - 37 mm 5
vite di testa/fixing with frontal screw vite di testa/fixing with frontal screw
T T
263 3 D CR0328TXX 263 3 S CR0328TXX 3251 263 3 D CR0328TT1 263 3 S CR0328TT1 3359 - 28 mm 5
263 3 D CR0337TXX 263 3 S CR0337TXX 3151 263 3 D CR0337TT1 263 3 S CR0337TT1 3259 - 37 mm 5

* Per ordinare l’articolo con mano R/L * Per ordinare l’articolo in confezione industriale A richiesta serrature dipendenti, pag 52
To order the R/L lock To order the lock in industrial packaging Also available with interconnected locks, see page 52
2631 R CR0328CXX 263 0 DCR0328CXX 5 263 6 DCR0328CXX

263 5 DCR0328CXX
