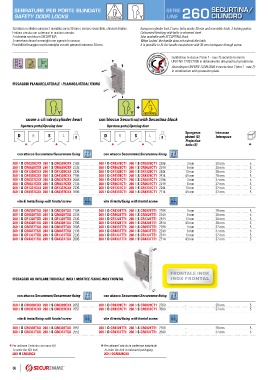

Page 88 - Catalogo MY 22 23

! !
SECURTINA/TINA/
SERRA
SERRATURE PER PORTE BLINDATETURE PER PORTE BLINDATE LINE 260 SECUR
SERIE
SERIE
SAFETY DOOR LOCKS SEC Y Y LINE 260 CILINDROCILINDRO
SAFETY DOOR LOCKS
SECURTINAURTINA
Serratura a cilindro europeo 3 mandate corsa 30 mm e scrocco reversibile, chiusura triplice. European cylinder lock 3 turns, bolts stroke 30 mm and reversible latch, 3 locking points.
Finitura zincata con catenacci in acciaio cromato. Galvanized finishing with bolts in chromed steel.
A richiesta con blocco SECURTINA. Also available with SECURTINA block.
A serratura chiusa la maniglia non sgancia lo scrocco. When locked, the handle does not unhook the latch.
Possibilità fissaggio rosetta maniglia con viti passanti interasse 38 mm. It is possible to fix the handle escutcheon with 38 mm interspace through screw.
Soddisfano la classe 7 (min 1 - max 7) secondo la norma
UNI ENV 12209:2005 in abbinamento alla piastra di protezione.
B P R COMPLIENCES WITH EUROPEAN REGULATION According to UNI ENV 12209:2005 it meets class 7 (min 1 - max 7);
EN 12209:2005 in combination with protection plate.

FISSAGGIO PLANARE/LATERALE | PLANAR/LATERAL FIXING

!
+
Y Y SECURTINA
cuore a cilindro/cylinder heart con blocco Securtina/with Securtina block
Apertura porta/Opening door Apertura porta/Opening door
Sporgenza Interasse
D R S L g D R S L g pistoni (S) Interspace
Projection
* * * * bolts (S) *

C C
con attacco Securemme/Securemme fixing con attacco Securemme/Securemme fixing
260 1 D CR0328CXX 260 1 S CR0328CXX 2188 260 1 D CR0328CT1 260 1 S CR0328CT1 2296 3 mm 28 mm 5
260 1 D CR0628CXX 260 1 S CR0628CXX 2238 260 1 D CR0628CT1 260 1 S CR0628CT1 2349 6 mm 28 mm 5
260 1 D CR1328CXX 260 1 S CR1328CXX 2336 260 1 D CR1328CT1 260 1 S CR1328CT1 2444 13 mm 28 mm 5
260 1 D CR4328CXX 260 1 S CR4328CXX 2706 260 1 D CR4328CT1 260 1 S CR4328CT1 2814 43 mm 28 mm 5
260 1 D CR0337CXX 260 1 S CR0337CXX 2088 260 1 D CR0337CT1 260 1 S CR0337CT1 2196 3 mm 37 mm 5
260 1 D CR0637CXX 260 1 S CR0637CXX 2138 260 1 D CR0637CT1 260 1 S CR0637CT1 2249 6 mm 37 mm 5
260 1 D CR1337CXX 260 1 S CR1337CXX 2236 260 1 D CR1337CT1 260 1 S CR1337CT1 2344 13 mm 37 mm 5
260 1 D CR4337CXX 260 1 S CR4337CXX 2606 260 1 D CR4337CT1 260 1 S CR4337CT1 2714 43 mm 37 mm 5

vite di testa/fixing with frontal screw vite di testa/fixing with frontal screw
T T
260 1 D CR0328TXX 260 1 S CR0328TXX 2188 260 1 D CR0328TT1 260 1 S CR0328TT1 2296 3 mm 28 mm 5
260 1 D CR0628TXX 260 1 S CR0628TXX 2238 260 1 D CR0628TT1 260 1 S CR0628TT1 2349 6 mm 28 mm 5
260 1 D CR1328TXX 260 1 S CR1328TXX 2336 260 1 D CR1328TT1 260 1 S CR1328TT1 2444 13 mm 28 mm 5
260 1 D CR4328TXX 260 1 S CR4328TXX 2706 260 1 D CR4328TT1 260 1 S CR4328TT1 2814 43 mm 28 mm 5
260 1 D CR0337TXX 260 1 S CR0337TXX 2088 260 1 D CR0337TT1 260 1 S CR0337TT1 2196 3 mm 37 mm 5
260 1 D CR0637TXX 260 1 S CR0637TXX 2138 260 1 D CR0637TT1 260 1 S CR0637TT1 2249 6 mm 37 mm 5
260 1 D CR1337TXX 260 1 S CR1337TXX 2236 260 1 D CR1337TT1 260 1 S CR1337TT1 2344 13 mm 37 mm 5
260 1 D CR4337TXX 260 1 S CR4337TXX 2606 260 1 D CR4337TT1 260 1 S CR4337TT1 2714 43 mm 37 mm 5

FRONTALE INOX
FISSAGGIO AD INFILARE FRONTALE INOX | MORTICE FIXING INOX FRONTAL INOX FRONTAL

C C
con attacco Securemme/Securemme fixing con attacco Securemme/Securemme fixing
260 3 D CR0328CXX 260 3 S CR0328CXX 2652 260 3 D CR0328CT1 260 3 S CR0328CT1 2760 - 28 mm 5
260 3 D CR0337CXX 260 3 S CR0337CXX 2552 260 3 D CR0337CT1 260 3 S CR0337CT1 2660 - 37 mm 5

vite di testa/fixing with frontal screw vite di testa/fixing with frontal screw
T T
260 3 D CR0328TXX 260 3 S CR0328TXX 2652 260 3 D CR0328TT1 260 3 S CR0328TT1 2760 - 28 mm 5
260 3 D CR0337TXX 260 3 S CR0337TXX 2552 260 3 D CR0337TT1 260 3 S CR0337TT1 2660 - 37 mm 5

* Per ordinare l’articolo con mano R/L * Per ordinare l’articolo in confezione industriale
To order the R/L lock To order the lock in industrial packaging
2601 R CR0328CX 260 0 DCR0328CXX
