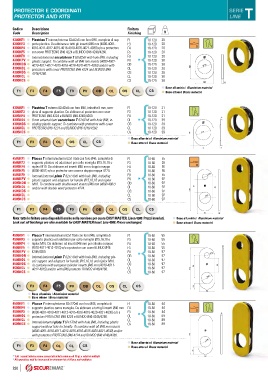

Page 240 - Catalogo MY 22 23

PROTECTOR E COORDINATI SERIE T
PROTECTOR AND KITS LINE

Codice Descrizione Finitura
Code Description Finishing g
4300KF1 Piastrina T interna/esterna 62x82x6 con foro Ø46, completa di sup- F1 10-120 20
4300KF3 porto plastico. Da abbinare a tutti gli inserti Ø46 mm (4000-4001- F3 10-120 20
4300KF4 4010-4011-4012-4015-4016-4018-4020-4021-4030) e/o a protectors F4 10-120 20 D Y
4300KF5 con cover PROTECNO Ø46 4224 e BLINDO Ø46 4246/4260. F5 10-120 20
4300KF9 Internal/external escutcheon T 62x82x6 with hole Ø46, including F9 10-120 20
4300KPV plastic support. To combine with all Ø46 mm inserts (4000-4001- PV * 10-120 38
4300KOB 4010-4011-4012-4015-4016-4018-4020-4021-4030) and/or with OB 10-120 38
4300KOL protectors with cover PROTECNO Ø46 4224 and BLINDO Ø46 OL 10-120 38
4300KOS 4246/4260. OS 10-120 38
4300KCL CL 10-120 38
4300KCS CS 10-120 38
Base alluminio | Aluminium material
F1 F3 F4 F5 F9 PV OB OL OS CL CS Base ottone | Brass material

4305KF1 Piastrina T esterna 62x82x6 con foro Ø46, imbutita 8 mm, com- F1 10-120 21
4305KF3 pleta di supporto plastico. Da abbinare ai protectors con cover F3 10-120 21
4305KF4 PROTECNO Ø46 4224 e BLINDO Ø46 4246/4260. F4 10-120 21 Y
4305KOL 8 mm external bent escutcheon T 62x82x6 with hole Ø46, in- OL * 10-120 39
4305KOS cluding plastic support. To combine with protectors with cover OS 10-120 39
4305KCL PROTECNO Ø46 4224 and BLINDO Ø46 4246/4260. CL 10-120 39
4305KCS CS 10-120 39
Base alluminio | Aluminium material
F1 F3 F4 OL OS CL CS Base ottone | Brass material

4505KF1 Placca T interna/esterna 62x170x6 con foro Ø46, completa di F1 10-60 55
4505KF3 supporto plastico ed adattatori per collo maniglia Ø15,16,18 e F3 10-60 55
4505KF4 niplex M10. Da abbinare ad inserti Ø46 mm a doppia mappa F4 10-60 55 D
4505KF5 (4000-4001) e/o a protector con cover a doppia mappa 4224. F5 10-60 55
4505KF9 Internal/external plate T 62x170x6 with hole Ø46, including F9 10-60 55
4505KPV plastic support and adapters for handle Ø15,16,18 and niplex PV * 10-60 97
4505KOB M10. To combine with double ward inserts Ø46 mm (4000-4001) OB 10-60 97
4505KOL and/or with double ward protector 4224. OL 10-60 97
4505KOS OS 10-60 97
4505KCL CL 10-60 97
4505KCS CS 10-60 97

F1 F3 F4 F5 F9 PV OB OL OS CL CS

Nota: tutte le finiture sono disponibili anche nella versione per cuore EASY MASTER. Linea 4508. Prezzi invariati. Base alluminio | Aluminium material
Look out: all finishings are also available for EASY MASTER heart. Line 4508. Prices unchanged. Base ottone | Brass material

4506KF1 Placca T interna/esterna 62x170x6 con foro Ø46, completa di F1 10-60 55
4506KF3 supporto plastico ed adattatori per collo maniglia Ø15,16,18 e F3 10-60 55
4506KF4 niplex M10. Da abbinare ad inserti Ø46 mm per cilindro europeo F4 10-60 55 Y
4506KF5 (4010-4011-4012-4015) e/o a protector con cover BLINDO Ø46 F5 10-60 55
4506KPV 4246/4260. PV 10-60 97
4506KOB Internal/external plate T 62x170x6 with hole Ø46, including pla- OB * 10-60 97
4506KOL stic support and adapters for handle Ø15,16,18 and niplex M10. OL 10-60 97
4506KOS To combine with european cylinder inserts Ø46 mm (4010-4011- OS 10-60 97
4506KCL 4012-4015) and/or with Ø46 protector BLINDO 4246/4260. CL 10-60 97
4506KCS CS 10-60 97

F1 F3 F4 F5 PV OB OL OS CL CS
Base alluminio | Aluminium material
Base ottone | Brass material
4509KF1 Placca T interna/esterna 62x170x6 con foro Ø46, completa di F1 10-60 44
4509KF4 supporto plastico senza maniglia. Da abbinare a tutti gli inserti Ø46 mm F4 10-60 44
4509KF3 (4000-4001-4010-4011-4012-4015-4016-4018-4020-4021-4030) e/o a F3 10-60 44 D Y
4509KOL protectors PROTECNO Ø46 4224 e BLINDO Ø46 4246/4260. OL * 10-60 89
4509KCL CL 10-60 89
4509KCS Internal/external plate T 62x170x6 with hole Ø46, including plastic CS 10-60 89
support without hole for handle. To combine with all Ø46 mm inserts
(4000-4001-4010-4011-4012-4015-4016-4018-4020-4021-4030) and/or
with protectors PROTECNO Ø46 4224 and BLINDO Ø46 4246/4260.
Base alluminio | Aluminium material
F1 F3 F4 OL CL CS Base ottone | Brass material

* Tutti i quantitativi saranno aumentati al lotto minimo di 10 pz e relativi multipli
* All quantities will be increased to minimum lot of 10 pcs and multiples
238
