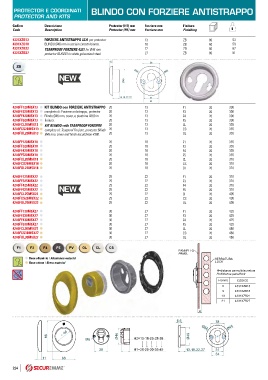

PROTECTOR E COORDINATI BLINDO CON FORZIERE ANTISTRAPPO
PROTECTOR AND KITS
Codice Descrizione Protector (H1) mm Forziere mm Finitura
Code Description Protector (H1) mm Forziere mm Finishing g
4331XZB13 FORZIERE ANTISTRAPPO 4331 per protector 13 ZB 60 53
4331XZB18 BLINDO Ø46 mm in acciaio zincato bianco. 18 ZB 60 59
4331XZB22 TEARPROOF FORZIERE 4331 for Ø46 mm 22 ZB 60 67
4331XZB27 protector BLINDO in white galvanized steel 27 ZB 60 81

6,5 38
ZB
Ø46
Ø64
NEW
Y Ø49

13-18-22-27 31
34
4246FF120M5X13 KIT BLINDO con FORZIERE ANTISTRAPPO 20 13 F1 20 300
4246FF320M5X13 completo di: Forziere antistrappo, protector 20 13 F3 20 300
4246FF420M5X13 Blindo Ø46 mm, cover, e piastrina 4380 in 20 13 F4 20 300
4246FF520M5X13 finitura. 20 13 F5 20 300
4246FCL20M5X13 KIT BLINDO with TEARPROOF FORZIERE 20 13 CL 20 335
4246FCS20M5X13 complete of: Tearproof Forziere, protector Blindo 20 13 CS 20 335
4246FOL20M5X13 Ø46 mm, cover and finish escutcheon 4380. 20 13 OL 20 335

4246FF120M5X18 20 18 F1 20 335
4246FF320M5X18 20 18 F3 20 335
4246FF420M5X18 20 18 F4 20 335
4246FF520M5X18 20 18 F5 20 335
4246FCL20M5X18 20 18 CL 20 370
4246FCS20M5X18 20 18 CS 20 370
4246FOL22M5X18 20 18 OL 20 370
4246FF125M5X22 25 22 F1 20 370
4246FF325M5X22 25 22 F3 20 370
4246FF425M5X22 25 22 F4 20 370
4246FF525M5X22 NEW 25 22 F5 20 370
4246FCL25M5X22 25 22 CL 20 405
4246FCS25M5X22 25 22 CS 20 405
4246FOL25M5X22 25 22 OL 20 405
4246FF130M5X27 30 27 F1 20 425
4246FF330M5X27 30 27 F3 20 425
4246FF430M5X27 30 27 F4 20 425
4246FF530M5X27 30 27 F5 20 425
4246FCL30M5X27 30 27 CL 20 460
4246FCS30M5X27 30 27 CS 20 460
4246FOL30M5X27 30 27 OL 20 460

F1 F3 F4 F5 PV OL CL CS
PANNELLO
PANEL
Base alluminio | Aluminium material SERRATURA
Base ottone | Brass material LOCK
Y
H=distanza pannello/serratura
A H=distance panel/lock
H (mm) CODICE
5 4331XZB13
9 4331XZB18
13 4331XZB22
21 4331XZB27

H
6,5 38
Ø64 Ø46
46
88 • 46 Ø49
M6 Ø H2=13-18-23-28-38
38 H1=20-25-30-35-45 13-18-22-27 31
34
11 66

234
