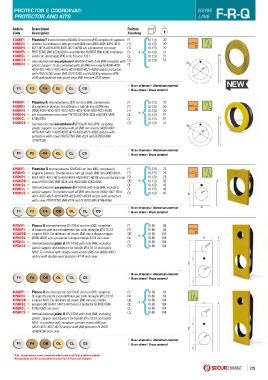

Page 241 - Catalogo MY 22 23

PROTECTOR E COORDINATI SERIE F-R-Q
PROTECTOR AND KITS LINE

Codice Descrizione Finitura
Code Description Finishing g
4380KF1 Piastrina F interna/esterna 66x88x10 con foro Ø46 completa di supporto F1 10-120 20
4380KF3 plastico. Da abbinare a tutti gli inserti Ø46 mm (4000-4001-4010-4011- F3 10-120 20
4380KF4 4012-4015-4016-4018-4020-4021-4030) e/o a protectors con cover F4 10-120 20 D Y
4380KF5 PROTECNO Ø46 4224/4260 e ai protectors BLINDO Ø46 4246 con/senza F5 * 10-120 51
4380KCL vaschette antistrappo Ø46 serie Forziere 4331. CL 10-120 51
4380KCS Internal/external escutcheon F 66x88x10 with hole Ø46 complete with CS 10-120 51
4380KOL plastic support. To be combined with all Ø46 mm inserts (4000-4001- OL
4010-4011-4012-4015-4016-4018-4020-4021-4030) and/or protectors
with PROTECNO cover Ø46 4224/4260 and BLINDO protectors Ø46
4246 with/without tear-proof trays Ø46 Forziere 4331 series.
NEW
Base alluminio | Aluminium material
F1 F3 F4 OL CL CS Base ottone | Brass material

4400KF1 Piastrina R, interna/esterna, Ø70 con foro Ø46, comprensiva F1 10-120 20
4400KF3 di supporto in plastica. Da abbinare a tutti gli inserti Ø46 mm F3 10-120 20
4400KF4 (4000-4001-4010-4011-4012-4015-4016-4018-4020-4021-4030) F4 10-120 20 D Y
4400KOL e/o con protezioni con cover PROTECNO Ø46 4224 e BLINDO Ø46 OL * 10-120 51
4400KCL 4246/4260. CL 10-120 51
4400KCS Internal/external escutcheon R Ø70 with hole Ø46, including CS 10-120 51
plastic support. To combine with all Ø46 mm inserts (4000-4001-
4010-4011-4012-4015-4016-4018-4020-4021-4030) and/or with
protectors with cover PROTECNO Ø46 4224 and BLINDO Ø46
4246/4260.

Base alluminio | Aluminium material
F1 F3 F4 OL CL CS Base ottone | Brass material

4350KF1 Piastrina Q interna/esterna 62x82x6 con foro Ø46, completa di F1 10-120 25
4350KF3 supporto plastico. Da abbinare a tutti gli inserti Ø46 mm (4000-4001- F3 10-120 25
4350KF4 4010-4011-4012-4015-4016-4018-4020-4021-4030) e/o a protectors con F4 10-120 25 D Y
4350KOB cover PROTECNO Ø46 4224 e BLINDO Ø46 4246/4260. OB * 10-120 43
4350KOL OL 10-120 43
4350KCL Internal/external escutcheon Q 62x82x6 with hole Ø46, including CL 10-120 43
4350KCS plastic support. To combine with all Ø46 mm inserts (4000-4001-4010- CS 10-120 43
4011-4012-4015-4016-4018-4020-4021-4030) and/or with protectors
with cover PROTECNO Ø46 4224 and BLINDO Ø46 4246/4260.
Base alluminio | Aluminium material
F1 F3 F4 OB OL CL CS Base ottone | Brass material

4555KF1 Placca Q interna/esterna 62x170x6 con foro Ø46, completa F1 10-60 64
4555KF4 di supporto plastico ed adattatori per collo maniglia Ø15,16,18 F4 10-60 64
4555KOB e niplex M10. Da abbinare ad inserti Ø46 mm a doppia mappa OB 10-60 104 D
4555KOL (4000-4001) e/o a protector a doppia mappa 4224 con cover. OL * 10-60 104
4555KCL Internal/external plate Q 62x170x6 with hole Ø46, including CL 10-60 104
4555KCS CS 10-60 104
plastic support and adapters for handle Ø15,16,18 and niplex
M10. To combine with double ward inserts Ø46 mm (4000-4001)
and/or with double ward protector 4224 and cover.

Base alluminio | Aluminium material
F1 F4 OB OL CL CS Base ottone | Brass material

4556KF1 Placca Q interna/esterna 62x170x6 con foro Ø46, completa F1 10-60 64
4556KF4 di supporto plastico ed adattatori per collo maniglia Ø15,16,18 F4 10-60 64
4556KOB e niplex M10. Da abbinare ad inserti Ø46 mm per cilindro OB 10-60 104 Y
4556KOL europeo (4010-4011-4012-4015) e/o a protector BLINDO Ø46 OL * 10-60 104
4556KCL 4246/4260 con cover. CL 10-60 104
4556KCS Internal/external plate Q 62x170x6 with hole Ø46, including CS 10-60 104
plastic support and adapters for handle Ø15,16,18 and niplex
M10. To combine with european cylinder inserts Ø46 mm
(4010-4011-4012-4015) and/or with Ø46 protector BLINDO
4246/4260 and cover.

Base alluminio | Aluminium material
F1 F4 OB OL CL CS Base ottone | Brass material

* Tutti i quantitativi saranno aumentati al lotto minimo di 10 pz e relativi multipli
* All quantities will be increased to minimum lot of 10 pcs and multiples
239
