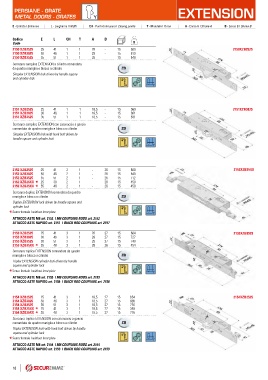

Page 20 - Catalogo MY 22 23
P. 20
PERSIANE - GRATE EXTENSION
METAL DOORS - GRATES Y
E - Entrata | Entrance L - Larghezza | Width CH - Punti di chiusura | Closing points T - Mandate | Turns A - Corsa A | Stroke A B - Corsa B | Stroke B
Codice E L CH T A B
Code g
2150 XZB2525 25 41 1 1 28 - 15 583 2150XZB2525
2150 XZB3025 30 46 1 1 28 - 15 619
2150 XZB3525 35 51 1 1 28 - 15 649
Serratura semplice EXTENSION a cilindro comandata
da quadro maniglia e blocco a cilindro ZB
Simplex EXTENSION lock driven by handle square
and cylinder lock
H G T
2151 XZB2525 25 41 1 1 18,5 - 15 569 2151XZB3025
2151 XZB3025 30 46 1 1 18,5 - 15 601
2151 XZB3525 35 51 1 1 18,5 - 15 631
Serratura semplice EXTENSION con catenaccio a gancio
comandata da quadro maniglia e blocco a cilindro ZB
Simplex EXTENSION lock with hook bolt driven by
handle square and cylinder lock
H G T
2152 XZB2525 25 41 2 1 - 26 15 600 2152XZB35XX
2152 XZB3025 30 46 2 1 - 26 15 640
2152 XZB3525 35 51 2 1 - 26 15 712
2152 XZB25XX * 25 38 2 1 - 26 15 450
2152 XZB35XX * 35 48 2 1 - 26 15 450
Serratura duplice EXTENSION comandata da quadro
maniglia e blocco a cilindro ZB
Duplex EXTENSION lock driven by handle square and
cylinder lock
* Senza frontale | without front plate H G T
ATTACCO ASTE M8 art. 2152 | M8 COUPLING RODS art. 2152
ATTACCO ASTE RAPIDO art. 2157 | QUICK ROD COUPLING art. 2157
2153 XZB2525 25 41 3 1 28 27 15 684 2153XZB3525
2153 XZB3025 30 46 3 1 28 27 15 727
2153 XZB3525 35 51 3 1 28 27 15 749
2153 XZB35XX * 35 48 3 1 28 26 15 454
Serratura triplice EXTENSION comandata da quadro
maniglia e blocco a cilindro ZB
Triplex EXTENSION cylinder lock driven by handle
square and cylinder lock
* Senza frontale | without front plate H G T
ATTACCO ASTE M8 art. 2153 | M8 COUPLING RODS art. 2153
ATTACCO ASTE RAPIDO art. 2158 | QUICK ROD COUPLING art. 2158
2154 XZB2525 25 41 3 1 18,5 27 15 654 2154XZB2525
2154 XZB3025 30 46 3 1 18,5 27 15 686
2154 XZB3525 35 51 3 1 18,5 27 15 716
2154 XZB25XX * 25 41 3 1 18,5 27 15 359
2154 XZB35XX * 35 48 3 1 18,5 27 15 716
Serratura triplice EXTENSION con catenaccio a gancio
comandata da quadro maniglia e blocco a cilindro ZB
Triplex EXTENSION lock with hook bolt driven by handle
square and cylinder lock
* Senza frontale | without front plate H G T
ATTACCO ASTE M8 art. 2154 | M8 COUPLING RODS art. 2154
ATTACCO ASTE RAPIDO art. 2159 | QUICK ROD COUPLING art. 2159
18
