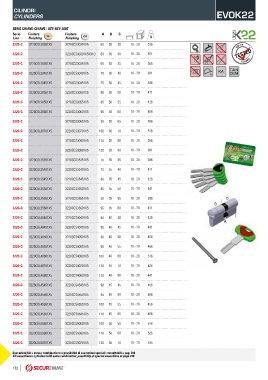

Page 174 - Catalogo MY 22 23

CILINDRI
CYLINDERS EVOK22

SERIE CHIAVE-CHIAVE | KEY-KEY LINE
Serie Finitura Finitura A B C
Line Finishing OL Finishing CS g
3220-C 3220COL30301X5 3220CCS30301X5 60 30 30 10 - 20 336
3220-C - 3220CCS30301X5XX10 60 30 30 10 - 20 351

3220-C 3220COL30351X5 3220CCS30351X5 65 30 35 10 - 20 366
KA TAN
3220-C 3220COL30401X5 3220CCS30401X5 70 30 40 10 - 20 381 K DEM
3220-C 3220COL30451X5 3220CCS30451X5 75 30 45 10 - 20 396

3220-C 3220COL30501X5 3220CCS30501X5 80 30 50 10 - 20 411

3220-C 3220COL30551X5 3220CCS30551X5 85 30 55 10 - 20 426
3220-C 3220COL30601X5 3220CCS30601X5 90 30 60 10 - 20 456

3220-C - 3220CCS30651X5 95 30 65 10 - 20 486

3220-C 3220COL30701X5 3220CCS30701X5 100 30 70 10 - 20 516
3220-C - 3220CCS30801X5 110 30 80 10 - 20 366

3220-C - 3220CCS30901X5 120 30 90 10 - 20 381

3220-C 3220COL35351X5 3220CCS35351X5 70 35 35 10 - 20 396
3220-C 3220COL35401X5 3220CCS35401X5 75 35 40 10 - 20 411

3220-C 3220COL35451X5 3220CCS35451X5 80 35 45 10 - 20 426

3220-C 3220COL35501X5 3220CCS35501X5 85 35 50 10 - 20 441
3220-C 3220COL35551X5 3220CCS35551X5 90 35 55 10 - 20 396 C
B
3220-C 3220COL35601X5 3220CCS35601X5 95 35 60 10 - 20 411

3220-C 3220COL40401X5 3220CCS40401X5 80 40 40 10 - 20 426
A
3220-C 3220COL40451X5 3220CCS40451X5 85 40 45 10 - 20 441

3220-C 3220COL40501X5 3220CCS40501X5 90 40 50 10 - 20 456

3220-C 3220COL40551X5 3220CCS40551X5 95 40 55 10 - 20 486
3220-C 3220COL40601X5 3220CCS40601X5 100 40 60 10 - 20 516

3220-C 3220COL40701X5 3220CCS40701X5 110 40 70 10 - 20 426

3220-C 3220COL40801X5 3220CCS40801X5 120 40 80 10 - 20 441
3220-C 3220COL45451X5 3220CCS45451X5 90 45 45 10 - 20 456

3220-C 3220COL45501X5 3220CCS45501X5 95 45 50 10 - 20 486

3220-C 3220COL45551X5 3220CCS45551X5 100 45 55 10 - 20 456
3220-C 3220COL45651X5 3220CCS45651X5 110 45 65 10 - 20 486

3220-C 3220COL50501X5 3220CCS50501X5 100 50 50 10 - 20 516

3220-C 3220COL50601X5 3220CCS50601X5 110 50 60 10 - 20 525
3220-C 3220COL50701X5 3220CCS50701X5 120 50 70 10 - 20 535

Esecuzioni KA = stessa combinazione e possibilità di esecuzioni speciali consultabili a pag. 210
KA executions= cylinders with same combination; possibility of special executions at page 210

172
