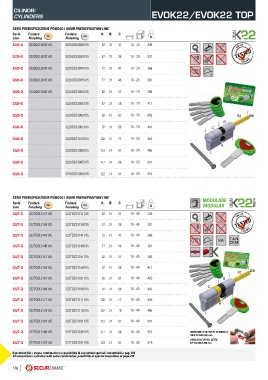

Page 178 - Catalogo MY 22 23

CILINDRI
CYLINDERS EVOK22/EVOK22 TOP

SERIE PREDISPOSIZIONE POMOLO | KNOB PREDISPOSITION LINE
Serie Finitura Finitura A B C
Line Finishing OL Finishing CS g
3220-Q 3220QOL30301X5 3220QCS30301X5 62 31 31 10 - 20 336

3220-Q 3220QOL30351X5 3220QCS30351X5 67 31 36 10 - 20 351

3220-Q 3220QOL30401X5 3220QCS30401X5 72 31 41 10 - 20 366
K
3220-Q 3220QOL30451X5 3220QCS30451X5 77 31 46 10 - 20 381

3220-Q 3220QOL30501X5 3220QCS30501X5 82 31 51 10 - 20 396

3220-Q - 3220QCS30551X5 87 31 56 10 - 20 411

3220-Q - 3220QCS30601X5 92 31 61 10 - 20 426 52 Ø8
B
3220-Q - 3220QCS30651X5 97 31 66 10 - 20 441 C

3220-Q - 3220QCS30701X5 102 31 71 10 - 20 456
A
3220-Q - 3220QCS30801X5 112 31 81 10 - 20 486

3220-Q - 3220QCS30851X5 117 31 86 10 - 20 501

3220-Q - 3220QCS30901X5 122 31 91 10 - 20 516

SERIE PREDISPOSIZIONE POMOLO | KNOB PREDISPOSITION LINE MODULARE
Serie Finitura OL Finitura A B C
Line Finishing Finishing CS g MODULAR
322T-Q 322TQOL31311X5 322TQCS31311X5 62 31 31 10 - 40 336

322T-Q 322TQOL31361X5 322TQCS31361X5 67 31 36 10 - 40 351
322T-Q 322TQOL31411X5 322TQCS31411X5 72 31 41 10 - 40 366
KA TAN
K DEM
322T-Q 322TQOL31461X5 322TQCS31461X5 77 31 46 10 - 40 381
322T-Q 322TQOL31511X5 322TQCS31511X5 82 31 51 10 - 40 396

322T-Q 322TQOL31561X5 322TQCS31561X5 87 31 56 10 - 40 411
52 Ø8
322T-Q 322TQOL31611X5 322TQCS31611X5 92 31 61 10 - 40 426 B

C
322T-Q 322TQOL31661X5 322TQCS31661X5 97 31 66 10 - 40 441
322T-Q 322TQOL31711X5 322TQCS31711X5 102 31 71 10 - 40 456
A
322T-Q 322TQOL31761X5 322TQCS31761X5 107 31 76 10 - 40 486

322T-Q 322TQOL31811X5 322TQCS31811X5 112 31 81 10 - 40 501

322T-Q 322TQOL31861X5 322TQCS31861X5 117 31 86 10 - 40 516 DISPONIBILE IN TUTTE LE MISURE
FINO A MAX 200 mm
AVAILABLE IN ALL SIZES
322T-Q 322TQOL31911X5 322TQCS31911X5 122 31 91 10 - 40 525 UP TO MAX 200 mm
Esecuzioni KA = stessa combinazione e possibilità di esecuzioni speciali consultabili a pag. 210
KA executions= cylinders with same combination; possibility of special executions at page 210

176
