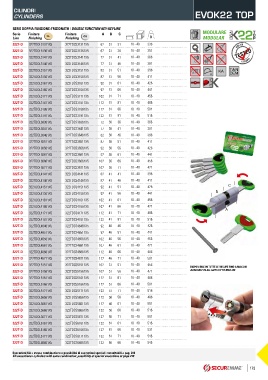

Page 175 - Catalogo MY 22 23

CILINDRI
CYLINDERS EVOK22 TOP

SERIE DOPPIA FUNZIONE-FRIZIONATO | DOUBLE FUNCTION KEY-KEYLINE
Serie Finitura Finitura A B C MODULARE
Line Finishing OL Finishing CS g MODULAR
322T-D 322TDOL31311X5 322TDCS31311X5 62 31 31 10 - 40 336
322T-D 322TDOL31361X5 322TDCS31361X5 67 31 36 10 - 40 351
322T-D 322TDOL31411X5 322TDCS31411X5 72 31 41 10 - 40 366
322T-D 322TDOL31461X5 322TDCS31461X5 77 31 46 10 - 40 381
322T-D 322TDOL31511X5 322TDCS31511X5 82 31 51 10 - 40 396 KA TAN
K DEM
322T-D 322TDOL31561X5 322TDCS31561X5 87 31 56 10 - 40 411
322T-D 322TDOL31611X5 322TDCS31611X5 92 31 61 10 - 40 426
322T-D 322TDOL31661X5 322TDCS31661X5 97 31 66 10 - 40 441
322T-D 322TDOL31711X5 322TDCS31711X5 102 31 71 10 - 40 456
322T-D 322TDOL31811X5 322TDCS31811X5 112 31 81 10 - 40 486
322T-D 322TDOL31861X5 322TDCS31861X5 117 31 86 10 - 40 501
322T-D 322TDOL31911X5 322TDCS31911X5 122 31 91 10 - 40 516
322T-D 322TDOL36361X5 322TDCS36361X5 72 36 36 10 - 40 366
322T-D 322TDOL36411X5 322TDCS36411X5 77 36 41 10 - 40 381
322T-D 322TDOL36461X5 322TDCS36461X5 82 36 46 10 - 40 396
322T-D 322TDOL36511X5 322TDCS36511X5 87 36 51 10 - 40 411
322T-D 322TDOL36561X5 322TDCS36561X5 92 36 56 10 - 40 426
322T-D 322TDOL36611X5 322TDCS36611X5 97 36 61 10 - 40 441
322T-D 322TDOL36661X5 322TDCS36661X5 102 36 66 10 - 40 456
322T-D 322TDOL36711X5 322TDCS36711X5 107 36 71 10 - 40 471
322T-D 322TDOL41411X5 322TDCS41411X5 82 41 41 10 - 40 396
322T-D 322TDOL41461X5 322TDCS41461X5 87 41 46 10 - 40 411
322T-D 322TDOL41511X5 322TDCS41511X5 92 41 51 10 - 40 426 C
322T-D 322TDOL41561X5 322TDCS41561X5 97 41 56 10 - 40 441 B
322T-D 322TDOL41611X5 322TDCS41611X5 102 41 61 10 - 40 456
322T-D 322TDOL41661X5 322TDCS41661X5 107 41 66 10 - 40 471
A
322T-D 322TDOL41711X5 322TDCS41711X5 112 41 71 10 - 40 486
322T-D 322TDOL41811X5 322TDCS41811X5 122 41 81 10 - 40 516
322T-D 322TDOL46461X5 322TDCS46461X5 92 46 46 10 - 40 426
322T-D 322TDOL46511X5 322TDCS46511X5 97 46 51 10 - 40 441
322T-D 322TDOL46561X5 322TDCS46561X5 102 46 56 10 - 40 456
322T-D 322TDOL46611X5 322TDCS46611X5 107 46 61 10 - 40 471
322T-D 322TDOL46661X5 322TDCS46661X5 112 46 66 10 - 40 486
322T-D 322TDOL46711X5 322TDCS46711X5 117 46 71 10 - 40 501
322T-D 322TDOL51511X5 322TDCS51511X5 102 51 51 10 - 40 456 DISPONIBILE IN TUTTE LE MISURE FINO A MAX 200
322T-D 322TDOL51561X5 322TDCS51561X5 107 51 56 10 - 40 471 AVAILABLE IN ALL SIZES UP TO MAX 200
322T-D 322TDOL51611X5 322TDCS51611X5 112 51 61 10 - 40 486
322T-D 322TDOL51661X5 322TDCS51661X5 117 51 66 10 - 40 501
322T-D 322TDOL51711X5 322TDCS51711X5 122 51 71 10 - 40 516
322T-D 322TDOL56561X5 322TDCS56561X5 112 56 56 10 - 40 486
322T-D 322TDOL56611X5 322TDCS56611X5 117 56 61 10 - 40 501
322T-D 322TDOL56661X5 322TDCS56661X5 122 56 66 10 - 40 516
322T-D 322TDOL56711X5 322TDCS56711X5 127 56 71 10 - 40 501
322T-D 322TDOL61611X5 322TDCS61611X5 122 61 61 10 - 40 516
322T-D 322TDOL61661X5 322TDCS61661X5 127 61 66 10 - 40 531
322T-D 322TDOL61711X5 322TDCS61711X5 132 61 71 10 - 40 546
322T-D 322TDOL66661X5 322TDCS66661X5 132 66 66 10 - 40 546

Esecuzioni KA = stessa combinazione e possibilità di esecuzioni speciali consultabili a pag. 210
KA executions= cylinders with same combination; possibility of special executions at page 210

173
