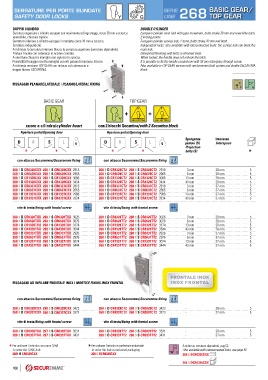

P. 102
SERRATURE PER PORTE BLINDATE SERIE BASIC GEAR/
SAFETY DOOR LOCKS Y G LINE 268 TOP GEAR
DOPPIO CILINDRO DOUBLE CYLINDER
Serratura superiore a cilindro europeo con movimento ad ingranaggi, corsa 30 mm e scrocco European cylinder main lock with gear movement, bolts stroke 30 mm and reversible latch,
reversibile, chiusura triplice. 3 locking points.
Serratura inferiore a cilindro europeo 2 mandate corsa 20 mm e scrocco. European cylinder service lock, 2 turns, bolts stroke 20 mm and latch.
Serrature indipendenti. Independent locks; also available with interconnected locks: the service lock can block the
A richiesta la serratura inferiore blocca la serratura superiore (serrature dipendenti). main lock.
Finitura zincata con catenacci in acciaio cromato. Galvanized finishing with bolts in chromed steel.
A serratura chiusa la maniglia non sgancia lo scrocco. When locked, the handle does not unhook the latch.
Possibilità fissaggio rosetta maniglia con viti passanti interasse 38 mm. It is possible to fix the handle escutcheon with 38 mm interspace through screw.
A richiesta versione TOP GEAR con rinforzo sul catenaccio e Also available in TOP GEAR version with reinforcement bolt system and double SECURTINA
doppio blocco SECURTINA. block.
FISSAGGIO PLANARE/LATERALE | PLANAR/LATERAL FIXING
P R
BASIC GEAR TOP GEAR
! !
+ +
Y Y SECURTINA SECURTINA
cuore a cilindro/cylinder heart con 2 blocchi Securtina/with 2 Securtina block
Apertura porta/Opening door Apertura porta/Opening door
Sporgenza Interasse
D R S L g D R S L g pistoni (S) Interspace
Projection
* * * * bolts (S) *
C C
con attacco Securemme/Securemme fixing con attacco Securemme/Securemme fixing
268 1 D CR0328CXX 268 1 S CR0328CXX 2918 268 1 D CR0328CT2 268 1 S CR0328CT2 2918 3 mm 28 mm 5
268 1 D CR0628CXX 268 1 S CR0628CXX 2965 268 1 D CR0628CT2 268 1 S CR0628CT2 2965 6 mm 28 mm 5
268 1 D CR1328CXX 268 1 S CR1328CXX 3066 268 1 D CR1328CT2 268 1 S CR1328CT2 3066 13 mm 28 mm 5
268 1 D CR4328CXX 268 1 S CR4328CXX 3434 268 1 D CR4328CT2 268 1 S CR4328CT2 3434 43 mm 28 mm 5
268 1 D CR0337CXX 268 1 S CR0337CXX 2818 268 1 D CR0337CT2 268 1 S CR0337CT2 2818 3 mm 37 mm 5
268 1 D CR0637CXX 268 1 S CR0637CXX 2865 268 1 D CR0637CT2 268 1 S CR0637CT2 2865 6 mm 37 mm 5
268 1 D CR1337CXX 268 1 S CR1337CXX 2966 268 1 D CR1337CT2 268 1 S CR1337CT2 2966 13 mm 37 mm 5
268 1 D CR4337CXX 268 1 S CR4337CXX 3334 268 1 D CR4337CT2 268 1 S CR4337CT2 3334 43 mm 37 mm 5
vite di testa/fixing with frontal screw vite di testa/fixing with frontal screw
T T
268 1 D CR0328TXX 268 1 S CR0328TXX 3026 268 1 D CR0328TT2 268 1 S CR0328TT2 3026 3 mm 28 mm 5
268 1 D CR0628TXX 268 1 S CR0628TXX 3076 268 1 D CR0628TT2 268 1 S CR0628TT2 3076 6 mm 28 mm 5
268 1 D CR1328TXX 268 1 S CR1328TXX 3174 268 1 D CR1328TT2 268 1 S CR1328TT2 3174 13 mm 28 mm 5
268 1 D CR4328TXX 268 1 S CR4328TXX 3544 268 1 D CR4328TT2 268 1 S CR4328TT2 3544 43 mm 28 mm 5
268 1 D CR0337TXX 268 1 S CR0337TXX 2926 268 1 D CR0337TT2 268 1 S CR0337TT2 2926 3 mm 37 mm 5
268 1 D CR0637TXX 268 1 S CR0637TXX 2976 268 1 D CR0637TT2 268 1 S CR0637TT2 2976 6 mm 37 mm 5
268 1 D CR1337TXX 268 1 S CR1337TXX 3074 268 1 D CR1337TT2 268 1 S CR1337TT2 3074 13 mm 37 mm 5
268 1 D CR4337TXX 268 1 S CR4337TXX 3444 268 1 D CR4337TT2 268 1 S CR4337TT2 3444 43 mm 37 mm 5
FRONTALE INOX
FISSAGGIO AD INFILARE FRONTALE INOX | MORTICE FIXING INOX FRONTAL INOX FRONTAL
C C
con attacco Securemme/Securemme fixing con attacco Securemme/Securemme fixing
268 3 D CR0328CXX 268 3 S CR0328CXX 3423 268 3 D CR0328CT2 268 3 S CR0328CT2 3423 - 28 mm 5
268 3 D CR0337CXX 268 3 S CR0337CXX 3323 268 3 D CR0337CT2 268 3 S CR0337CT2 3323 - 37 mm 5
vite di testa/fixing with frontal screw vite di testa/fixing with frontal screw
T T
268 3 D CR0328TXX 267 3 S CR0328TXX 3531 268 3 D CR0328TT2 268 3 S CR0328TT2 3531 - 28 mm 5
268 3 D CR0337TXX 267 3 S CR0337TXX 3431 268 3 D CR0337TT2 268 3 S CR0337TT2 3431 - 37 mm 5
* Per ordinare l’articolo con mano S/R/L * Per ordinare l’articolo in confezione industriale A richiesta serrature dipendenti, pag 52
To order the S/R/L lock To order the lock in industrial packaging Also available with interconnected locks, see page 52
2681 R CR0328CXX 268 0 DCR0328CXX 5 268 6 DCR0328CXX
264 5 DCR0328CXX
