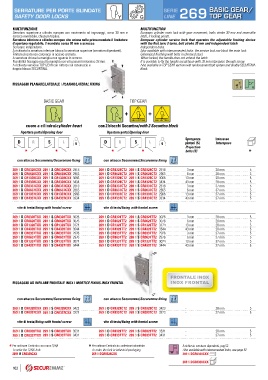

SERRATURE PER PORTE BLINDATE SERIE BASIC GEAR/
SAFETY DOOR LOCKS Y G LINE 269 TOP GEAR

MULTIFUNZIONE MULTIFUNCTION
Serratura superiore a cilindro europeo con movimento ad ingranaggi, corsa 30 mm e European cylinder main lock with gear movement, bolts stroke 30 mm and reversible
scrocco reversibile, chiusura triplice. latch, 3 locking points.
Serratura inferiore a cilindro europeo che aziona sulla prima mandata il limitatore European cylinder service lock that operates the adjustable limiting device
d’apertura regolabile, 2 mandate corsa 20 mm e scrocco. with the first turn; 2 turns, bolt stroke 20 mm and independent latch.
Serrature indipendenti. Independent locks.
A richiesta la serratura inferiore blocca la serratura superiore (serrature dipendenti). Also available with interconnected locks: the service lock can block the main lock.
Finitura zincata con catenacci in acciaio cromato. Galvanized finishing with bolts in chromed steel.
A serratura chiusa la maniglia non sgancia lo scrocco. When locked, the handle does not unhook the latch.
Possibilità fissaggio rosetta maniglia con viti passanti interasse 38 mm. It is possible to fix the handle escutcheon with 38 mm interspace through screw.
A richiesta versione TOP GEAR con rinforzo sul catenaccio e Also available in TOP GEAR version with reinforcement bolt system and double SECURTINA
doppio blocco SECURTINA. block.

FISSAGGIO PLANARE/LATERALE | PLANAR/LATERAL FIXING
P R

BASIC GEAR TOP GEAR

! !
+ +
Y Y SECURTINA SECURTINA
cuore a cilindro/cylinder heart con 2 blocchi Securtina/with 2 Securtina block
Apertura porta/Opening door Apertura porta/Opening door
Sporgenza Interasse
D R S L g D R S L g pistoni (S) Interspace
Projection
* * * * bolts (S) *
C C
con attacco Securemme/Securemme fixing con attacco Securemme/Securemme fixing
269 1 D CR0328CXX 269 1 S CR0328CXX 2918 269 1 D CR0328CT2 269 1 S CR0328CT2 2918 3 mm 28 mm 5
269 1 D CR0628CXX 269 1 S CR0628CXX 2965 269 1 D CR0628CT2 269 1 S CR0628CT2 2965 6 mm 28 mm 5
269 1 D CR1328CXX 269 1 S CR1328CXX 3066 269 1 D CR1328CT2 269 1 S CR1328CT2 3066 13 mm 28 mm 5
269 1 D CR4328CXX 269 1 S CR4328CXX 3434 269 1 D CR4328CT2 269 1 S CR4328CT2 3434 43 mm 28 mm 5
269 1 D CR0337CXX 269 1 S CR0337CXX 2818 269 1 D CR0337CT2 269 1 S CR0337CT2 2818 3 mm 37 mm 5
269 1 D CR0637CXX 269 1 S CR0637CXX 2865 269 1 D CR0637CT2 269 1 S CR0637CT2 2865 6 mm 37 mm 5
269 1 D CR1337CXX 269 1 S CR1337CXX 2966 269 1 D CR1337CT2 269 1 S CR1337CT2 2966 13 mm 37 mm 5
269 1 D CR4337CXX 269 1 S CR4337CXX 3334 269 1 D CR4337CT2 269 1 S CR4337CT2 3334 43 mm 37 mm 5

vite di testa/fixing with frontal screw vite di testa/fixing with frontal screw
T T
269 1 D CR0328TXX 269 1 S CR0328TXX 3026 269 1 D CR0328TT2 269 1 S CR0328TT2 3026 3 mm 28 mm 5
269 1 D CR0628TXX 269 1 S CR0628TXX 3076 269 1 D CR0628TT2 269 1 S CR0628TT2 3076 6 mm 28 mm 5
269 1 D CR1328TXX 269 1 S CR1328TXX 3174 269 1 D CR1328TT2 269 1 S CR1328TT2 3174 13 mm 28 mm 5
269 1 D CR4328TXX 269 1 S CR4328TXX 3544 269 1 D CR4328TT2 269 1 S CR4328TT2 3544 43 mm 28 mm 5
269 1 D CR0337TXX 269 1 S CR0337TXX 2926 269 1 D CR0337TT2 269 1 S CR0337TT2 2926 3 mm 37 mm 5
269 1 D CR0637TXX 269 1 S CR0637TXX 2976 269 1 D CR0637TT2 269 1 S CR0637TT2 2976 6 mm 37 mm 5
269 1 D CR1337TXX 269 1 S CR1337TXX 3074 269 1 D CR1337TT2 269 1 S CR1337TT2 3074 13 mm 37 mm 5
269 1 D CR4337TXX 269 1 S CR4337TXX 3444 269 1 D CR4337TT2 269 1 S CR4337TT2 3444 43 mm 37 mm 5

FRONTALE INOX
FISSAGGIO AD INFILARE FRONTALE INOX | MORTICE FIXING INOX FRONTAL INOX FRONTAL

C C
con attacco Securemme/Securemme fixing con attacco Securemme/Securemme fixing
269 3 D CR0328CXX 269 3 S CR0328CXX 3423 269 3 D CR0328CT2 269 3 S CR0328CT2 3423 - 28 mm 5
269 3 D CR0337CXX 269 3 S CR0337CXX 3323 269 3 D CR0337CT2 269 3 S CR0337CT2 3323 - 37 mm 5
vite di testa/fixing with frontal screw vite di testa/fixing with frontal screw
T T
269 3 D CR0328TXX 269 3 S CR0328TXX 3531 269 3 D CR0328TT2 269 3 S CR0328TT2 3531 - 28 mm 5
269 3 D CR0337TXX 269 3 S CR0337TXX 3431 269 3 D CR0337TT2 269 3 S CR0337TT2 3431 - 37 mm 5

* Per ordinare l’articolo con mano S/R/L * Per ordinare l’articolo in confezione industriale A richiesta serrature dipendenti, pag 52
To order the S/R/L lock To order the lock in industrial packaging Also available with interconnected locks, see page 52
2691 R CR0328CXX 269 0 DCR0328CXX 5 269 6 DCR0328CXX

269 5 DCR0328CXX
