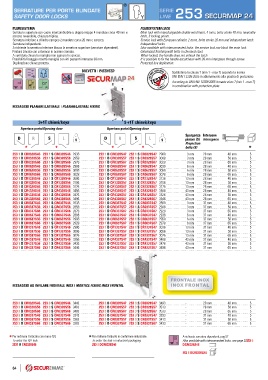

Page 66 - Catalogo MY 22 23

®
SERRATURE PER PORTE BLINDATE SERIE 253
SAFETY DOOR LOCKS S Y LINE SECURMAP 24

PLURISISTEMA PLURISYSTEM LOCK
Serratura superiore con cuore intercambiabile a doppia mappa 4 mandate corsa 40 mm e Main lock with interchangeable double ward heart, 4 turns, bolts stroke 40 mm, reversible
scrocco reversibile, chiusura triplice. latch, 3 locking points.
Serratura inferiore a cilindro europeo 2 mandate corsa 20 mm e scrocco. Service lock with European cylinder, 2 turns, bolts stroke 20 mm and independent latch.
Serrature indipendenti. Independend locks.
A richiesta la serratura inferiore blocca la serratura superiore (serrature dipendenti). Also available with interconnected locks: the service lock can block the main lock.
Finitura zincata con catenacci in acciaio cromato. Galvanized finishing with bolts in chromed steel.
A serratura chiusa la maniglia non sgancia lo scrocco. When locked, the handle does not unhook the latch.
Possibilità fissaggio rosetta maniglia con viti passanti interasse 38 mm. It is possible to fix the handle escutcheon with 38 mm interspace through screw.
Duplicazione chiave protetta. Protected key duplication.
C BREVETTI | PATENTED Soddisfano la classe 7 (min 1 - max 7) secondo la norma
B UNI ENV 12209:2005 in abbinamento alla piastra di protezione.
X According to UNI ENV 12209:2005 it meets class 7 (min 1 - max 7);
in combination with protection plate.
5 P R

FISSAGGIO PLANARE/LATERALE | PLANAR/LATERAL FIXING

3+1T chiavi/keys 5 +1T chiavi/keys
Apertura porta/Opening door Apertura porta/Opening door
Sporgenza Interasse
D R S L g D R S L g pistoni (S) Interspace
Projection
* * * * bolts (S) *
253 1 D CR0328S46 253 1 S CR0328S46 2938 253 1 D CR0328S47 253 1 S CR0328S47 2988 3 mm 28 mm 40 mm 5
253 1 D CR0328S56 253 1 S CR0328S56 2958 253 1 D CR0328S57 253 1 S CR0328S57 3008 3 mm 28 mm 50 mm 5
253 1 D CR0328S66 253 1 S CR0328S66 2978 253 1 D CR0328S67 253 1 S CR0328S67 3028 3 mm 28 mm 65 mm 5
253 1 D CR0628S46 253 1 S CR0628S46 2988 253 1 D CR0628S47 253 1 S CR0628S47 3030 6 mm 28 mm 40 mm 5
253 1 D CR0628S56 253 1 S CR0628S56 3008 253 1 D CR0628S57 253 1 S CR0628S57 3058 6 mm 28 mm 50 mm 5
253 1 D CR0628S66 253 1 S CR0628S66 3028 253 1 D CR0628S67 253 1 S CR0628S67 3078 6 mm 28 mm 65 mm 5
253 1 D CR1328S46 253 1 S CR1328S46 3086 253 1 D CR1328S47 253 1 S CR1328S47 3136 13 mm 28 mm 40 mm 5
253 1 D CR1328S56 253 1 S CR1328S56 3106 253 1 D CR1328S57 253 1 S CR1328S57 3156 13 mm 28 mm 50 mm 5
253 1 D CR1328S66 253 1 S CR1328S66 3126 253 1 D CR1328S67 253 1 S CR1328S67 3176 13 mm 28 mm 65 mm 5
253 1 D CR4328S46 253 1 S CR4328S46 3456 253 1 D CR4328S47 253 1 S CR4328S47 3508 43 mm 28 mm 40 mm 5
253 1 D CR4328S56 253 1 S CR4328S56 3476 253 1 D CR4328S57 253 1 S CR4328S57 3526 43 mm 28 mm 50 mm 5
253 1 D CR4328S66 253 1 S CR4328S66 3496 253 1 D CR4328S67 253 1 S CR4328S67 3546 43 mm 28 mm 65 mm 5
253 1 D CR0337S46 253 1 S CR0337S46 2838 253 1 D CR0337S47 253 1 S CR0337S47 2888 3 mm 37 mm 40 mm 5
253 1 D CR0337S56 253 1 S CR0337S56 2858 253 1 D CR0337S57 253 1 S CR0337S57 2908 3 mm 37 mm 50 mm 5
253 1 D CR0337S66 253 1 S CR0337S66 2878 253 1 D CR0337S67 253 1 S CR0337S67 2928 3 mm 37 mm 65 mm 5
253 1 D CR0637S46 253 1 S CR0637S46 2888 253 1 D CR0637S47 253 1 S CR0637S47 2938 6 mm 37 mm 40 mm 5
253 1 D CR0637S56 253 1 S CR0637S56 2908 253 1 D CR0637S57 253 1 S CR0637S57 2958 6 mm 37 mm 50 mm 5
253 1 D CR0637S66 253 1 S CR0637S66 2928 253 1 D CR0637S67 253 1 S CR0637S67 2978 6 mm 37 mm 65 mm 5
253 1 D CR1337S46 253 1 S CR1337S46 2986 253 1 D CR1337S47 253 1 S CR1337S47 3036 13 mm 37 mm 40 mm 5
253 1 D CR1337S56 253 1 S CR1337S56 3006 253 1 D CR1337S57 253 1 S CR1337S57 3056 13 mm 37 mm 50 mm 5
253 1 D CR1337S66 253 1 S CR1337S66 3026 253 1 D CR1337S67 253 1 S CR1337S67 3076 13 mm 37 mm 65 mm 5
253 1 D CR4337S46 253 1 S CR4337S46 3356 253 1 D CR4337S47 253 1 S CR4337S47 3408 43 mm 37 mm 40 mm 5
253 1 D CR4337S56 253 1 S CR4337S56 3436 253 1 D CR4337S57 253 1 S CR4337S57 3476 43 mm 37 mm 50 mm 5
253 1 D CR4337S66 253 1 S CR4337S66 3446 253 1 D CR4337S67 253 1 S CR4337S67 3496 43 mm 37 mm 65 mm 5

FRONTALE INOX
FISSAGGIO AD INFILARE FRONTALE INOX | MORTICE FIXING INOX FRONTAL INOX FRONTAL

253 3 D CR0328S46 253 3 S CR0328S46 3443 253 3 D CR0328S47 253 3 S CR0328S47 3493 - 28 mm 40 mm 5
253 3 D CR0328S56 253 3 S CR0328S56 3463 253 3 D CR0328S57 253 3 S CR0328S57 3513 - 28 mm 50 mm 5
253 3 D CR0328S66 253 3 S CR0328S66 3483 253 3 D CR0328S67 253 3 S CR0328S67 3533 - 28 mm 65 mm 5
253 3 D CR0337S46 253 3 S CR0337S46 3343 253 3 D CR0337S47 253 3 S CR0337S47 3393 - 37 mm 40 mm 5
253 3 D CR0337S56 253 3 S CR0337S56 3363 253 3 D CR0337S57 253 3 S CR0337S57 3413 - 37 mm 50 mm 5
253 3 D CR0337S66 253 3 S CR0337S66 3383 253 3 D CR0337S67 253 3 S CR0337S67 3433 - 37 mm 65 mm 5

* Per ordinare l’articolo con mano R/L * Per ordinare l’articolo in confezione industriale A richiesta serrature dipendenti, pag 52
To order the R/L lock To order the lock in industrial packaging Also available with interconnected locks, see page 52253 6
2531 R CR0328S46 253 0 DCR0328S46 5 DCR0328S46
253 5 DCR0328S46
