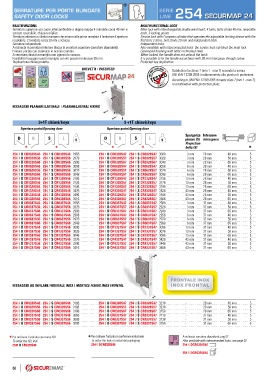

Page 70 - Catalogo MY 22 23

®
SERRATURE PER PORTE BLINDATE SERIE 254
SAFETY DOOR LOCKS S Y LINE SECURMAP 24
MULTIFUNZIONE MULTIFUNCTIONAL LOCK
Serratura superiore con cuore intercambiabile a doppia mappa 4 mandate corsa 40 mm e Main lock with interchangeable double ward heart, 4 turns, bolts stroke 40 mm, reversible
scrocco reversibile, chiusura triplice. latch, 3 locking points.
Serratura inferiore a cilindro europeo che aziona sulla prima mandata il limitatore d’apertura Service lock with European cylinder that operates the adjustable limiting device with the
regolabile, 2 mandate corsa 20 mm e scrocco. first turn; 2 turns, bolt stroke 20 mm and independent latch.
Serrature indipendenti. Independent locks.
A richiesta la serratura inferiore blocca la serratura superiore (serrature dipendenti). Also available with interconnected locks: the service lock can block the main lock.
Finitura zincata con catenacci in acciaio cromato. Galvanized finishing with bolts in chromed steel.
A serratura chiusa la maniglia non sgancia lo scrocco. When locked, the handle does not unhook the latch.
Possibilità fissaggio rosetta maniglia con viti passanti interasse 38 mm. It is possible to fix the handle escutcheon with 38 mm interspace through screw.
Duplicazione chiave protetta. Protected key duplication.
C BREVETTI | PATENTED Soddisfano la classe 7 (min 1 - max 7) secondo la norma
B UNI ENV 12209:2005 in abbinamento alla piastra di protezione.
X According to UNI ENV 12209:2005 it meets class 7 (min 1 - max 7);
5 P R in combination with protection plate.

FISSAGGIO PLANARE/LATERALE | PLANAR/LATERAL FIXING

3+1T chiavi/keys 5 +1T chiavi/keys
Apertura porta/Opening door Apertura porta/Opening door
Sporgenza Interasse
D R S L g D R S L g pistoni (S) Interspace
Projection
* * * * bolts (S) *
254 1 D CR0328S46 254 1 S CR0328S46 2958 254 1 D CR0328S47 254 1 S CR0328S47 3008 3 mm 28 mm 40 mm 5
254 1 D CR0328S56 254 1 S CR0328S56 2978 254 1 D CR0328S57 254 1 S CR0328S57 3028 3 mm 28 mm 50 mm 5
254 1 D CR0328S66 254 1 S CR0328S66 2998 254 1 D CR0328S67 254 1 S CR0328S67 3048 3 mm 28 mm 65 mm 5
254 1 D CR0628S46 254 1 S CR0628S46 3008 254 1 D CR0628S47 254 1 S CR0628S47 3058 6 mm 28 mm 40 mm 5
254 1 D CR0628S56 254 1 S CR0628S56 3028 254 1 D CR0628S57 254 1 S CR0628S57 3078 6 mm 28 mm 50 mm 5
254 1 D CR0628S66 254 1 S CR0628S66 3048 254 1 D CR0628S67 254 1 S CR0628S67 3098 6 mm 28 mm 65 mm 5
254 1 D CR1328S46 254 1 S CR1328S46 3106 254 1 D CR1328S47 254 1 S CR1328S47 3156 13 mm 28 mm 40 mm 5
254 1 D CR1328S56 254 1 S CR1328S56 3126 254 1 D CR1328S57 254 1 S CR1328S57 3176 13 mm 28 mm 50 mm 5
254 1 D CR1328S66 254 1 S CR1328S66 3146 254 1 D CR1328S67 254 1 S CR1328S67 3196 13 mm 28 mm 65 mm 5
254 1 D CR4328S46 254 1 S CR4328S46 3476 254 1 D CR4328S47 254 1 S CR4328S47 3528 43 mm 28 mm 40 mm 5
254 1 D CR4328S56 254 1 S CR4328S56 3496 254 1 D CR4328S57 254 1 S CR4328S57 3546 43 mm 28 mm 50 mm 5
254 1 D CR4328S66 254 1 S CR4328S66 3516 254 1 D CR4328S67 254 1 S CR4328S67 3566 43 mm 28 mm 65 mm 5
254 1 D CR0337S46 254 1 S CR0337S46 2858 254 1 D CR0337S47 254 1 S CR0337S47 2908 3 mm 37 mm 40 mm 5
254 1 D CR0337S56 254 1 S CR0337S56 2878 254 1 D CR0337S57 254 1 S CR0337S57 2928 3 mm 37 mm 50 mm 5
254 1 D CR0337S66 254 1 S CR0337S66 2998 254 1 D CR0337S67 254 1 S CR0337S67 2948 3 mm 37 mm 65 mm 5
254 1 D CR0637S46 254 1 S CR0637S46 2908 254 1 D CR0637S47 254 1 S CR0637S47 2958 6 mm 37 mm 40 mm 5
254 1 D CR0637S56 254 1 S CR0637S56 2928 254 1 D CR0637S57 254 1 S CR0637S57 2978 6 mm 37 mm 50 mm 5
254 1 D CR0637S66 254 1 S CR0637S66 2948 254 1 D CR0637S67 254 1 S CR0637S67 2988 6 mm 37 mm 65 mm 5
254 1 D CR1337S46 254 1 S CR1337S46 3006 254 1 D CR1337S47 254 1 S CR1337S47 3056 13 mm 37 mm 40 mm 5
254 1 D CR1337S56 254 1 S CR1337S56 3026 254 1 D CR1337S57 254 1 S CR1337S57 3076 13 mm 37 mm 50 mm 5
254 1 D CR1337S66 254 1 S CR1337S66 3046 254 1 D CR1337S67 254 1 S CR1337S67 3096 13 mm 37 mm 65 mm 5
254 1 D CR4337S46 254 1 S CR4337S46 3376 254 1 D CR4337S47 254 1 S CR4337S47 3428 43 mm 37 mm 40 mm 5
254 1 D CR4337S56 254 1 S CR4337S56 3396 254 1 D CR4337S57 254 1 S CR4337S57 3446 43 mm 37 mm 50 mm 5
254 1 D CR4337S66 254 1 S CR4337S66 3416 254 1 D CR4337S67 254 1 S CR4337S67 3466 43 mm 37 mm 65 mm 5

FRONTALE INOX
FISSAGGIO AD INFILARE FRONTALE INOX | MORTICE FIXING INOX FRONTAL INOX FRONTAL

254 3 D CR0328S46 254 3 S CR0328S46 3168 254 3 D CR0328S47 254 3 S CR0328S47 3218 - 28 mm 40 mm 5
254 3 D CR0328S56 254 3 S CR0328S56 3188 254 3 D CR0328S57 254 3 S CR0328S57 3238 - 28 mm 50 mm 5
254 3 D CR0328S66 254 3 S CR0328S66 3198 254 3 D CR0328S67 254 3 S CR0328S67 3258 - 28 mm 65 mm 5
254 3 D CR0337S46 254 3 S CR0337S46 3068 254 3 D CR0337S47 254 3 S CR0337S47 3118 - 37 mm 40 mm 5
254 3 D CR0337S56 254 3 S CR0337S56 3088 254 3 D CR0337S57 254 3 S CR0337S57 3138 - 37 mm 50 mm 5
254 3 D CR0337S66 254 3 S CR0337S66 3098 254 3 D CR0337S67 254 3 S CR0337S67 3158 - 37 mm 65 mm 5

* Per ordinare l’articolo con mano R/L * Per ordinare l’articolo in confezione industriale A richiesta serrature dipendenti, pag 52
To order the R/L lock To order the lock in industrial packaging Also available with interconnected locks, see page 52
2541 R CR0328S46 254 0 DCR0328S46 5 254 6 DCR0328S46
254 5 DCR0328S46
