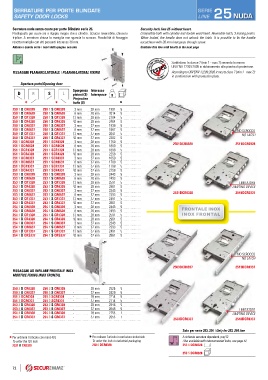

SERRATURE PER PORTE BLINDATE SERIE 25
SAFETY DOOR LOCKS LINE NUDA

Serratura nuda senza cuore per porte Blindate serie 25. Security lock line 25 without heart.
Predisposta per cuore sia a doppia mappa che a cilindro. Scrocco reversibile, chiusura Compatible both with cylinder and double ward heart. Reversible latch, 3 locking points.
triplice. A serratura chiusa la maniglia non sgancia lo scrocco. Possibilità di fissaggio When locked, the handle does not unhook the latch. It is possible to fix the handle
rosetta maniglia con viti passanti interasse 38 mm. escutcheon with 38 mm interspace through screw.
Abbina a questa serie i cuori della pagina accanto Combine this line with hearts in the next page

R Soddisfano la classe 7 (min 1 - max 7) secondo la norma
UNI ENV 12209:2005 in abbinamento alla piastra di protezione.
FISSAGGIO PLANARE/LATERALE | PLANAR/LATERAL FIXING According to UNI ENV 12209:2005 it meets class 7 (min 1 - max 7);
in combination with protection plate.
Apertura porta/Opening door
Sporgenza Interasse
D R S L pistoni (S) Interspace g
Projection
* * bolts (S) *
250 1 D CR0328 250 1 S CR0328 3 mm 28 mm 1991 5
250 1 D CR0628 250 1 S CR0628 6 mm 28 mm 2014 5
250 1 D CR1328 250 1 S CR1328 13 mm 28 mm 2104 5
250 1 D CR4328 250 1 S CR4328 43 mm 28 mm 2464 5
250 1 D CR0337 250 1 S CR0337 3 mm 37 mm 1939 5
250 1 D CR0637 250 1 S CR0637 6 mm 37 mm 1967 5 NO SCROCCO
250 1 D CR1337 250 1 S CR1337 13 mm 37 mm 2041 5 NO LATCH
250 1 D CR4337 250 1 S CR4337 43 mm 37 mm 2302 5
251 1 DCR0328 251 1 SCR0328 3 mm 28 mm 1750 5
251 1 DCR0628 251 1 SCR0628 6 mm 28 mm 1800 5 2501DCR0328 2511DCR0328
251 1 DCR1328 251 1 SCR1328 13 mm 28 mm 1898 5
251 1 DCR4328 251 1 SCR4328 43 mm 28 mm 2258 5
251 1 DCR0337 251 1 SCR0337 3 mm 37 mm 1650 5
251 1 DCR0637 251 1 SCR0637 6 mm 37 mm 1700 5
251 1 DCR1337 251 1 SCR1337 13 mm 37 mm 1798 5
251 1 DCR4337 251 1 SCR4337 43 mm 37 mm 2158 5
253 1 D CR0328 253 1 S CR0328 3 mm 28 mm 2443 5
253 1 D CR0628 253 1 S CR0628 6 mm 28 mm 2493 5
253 1 D CR1328 253 1 S CR1328 13 mm 28 mm 2591 5 LIMITATORE
253 1 D CR4328 253 1 S CR4328 43 mm 28 mm 2961 5 LIMITING DEVICE
253 1 D CR0337 253 1 S CR0337 3 mm 37 mm 2343 5
253 1 D CR0637 253 1 S CR0637 6 mm 37 mm 2393 5 2531DCR0328 2541DCR0337
253 1 D CR1337 253 1 S CR1337 13 mm 37 mm 2491 5
253 1 D CR4337 253 1 S CR4337 43 mm 37 mm 2861 5
254 1 D CR0328 254 1 S CR0328 3 mm 28 mm 2443 5
254 1 D CR0628 254 1 S CR0628 6 mm 28 mm 2493 5 FRONTALE INOX
254 1 D CR1328 254 1 S CR1328 13 mm 28 mm 2591 5 INOX FRONTAL
254 1 D CR4328 254 1 S CR4328 43 mm 28 mm 2961 5
254 1 D CR0337 254 1 S CR0337 3 mm 37 mm 2343 5
254 1 D CR0637 254 1 S CR0637 6 mm 37 mm 2393 5
254 1 D CR1337 254 1 S CR1337 13 mm 37 mm 2491 5
254 1 D CRS337 254 1 S CRS337 43 mm 37 mm 2861 5

NO SCROCCO
NO LATCH
2503DCR0337 2513DCR0337
FISSAGGIO AD INFILARE FRONTALE INOX
MORTICE FIXING INOX FRONTAL

250 3 D CR0328 250 3 S CR0328 - 28 mm 2526 5
250 3 D CR0337 250 3 S CR0337 - 37 mm 2429 5
251 3 DCR0328 251 3 SCR0328 - 28 mm 2214 5
251 3 DCR0337 251 3 SCR0337 - 37 mm 2114 5
253 3 D CR0328 253 3 S CR0328 - 28 mm 2948 5
253 3 D CR0337 253 3 S CR0337 - 37 mm 2848 5 LIMITATORE
254 3 D CR0328 254 3 S CR0328 - 28 mm 2753 1 LIMITING DEVICE
254 3 D CR0337 254 3 S CR0337 - 37 mm 2653 1
2533DCR0337 2543DCR0337

Solo per serie 253, 254 | Only for 253, 254 line
* Per ordinare l’articolo con mano R/L * Per ordinare l’articolo in confezione industriale A richiesta serrature dipendenti, pag 52
To order the R/L lock To order the lock in industrial packaging 5 Also available with interconnected locks, see page 52
2531 R CR0328 250 0 DCR0328 253 6 DCR0328
253 5 DCR0328
