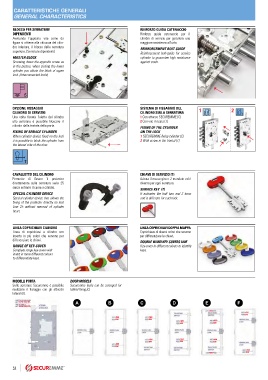

CARATTERISTICHE GENERALI
       GENERAL CHARACTERISTICS


       BLOCCO PER SERRATURE                                    RINFORZO GUIDA CATENACCIO
       DIPENDENTI                                              Rinforzo  guida  catenaccio  per  il
       Avvitando  l’apposita  vite  come  da                   cilindro di servizio  per garantire  una
       figura si ottiene alla chiusura del cilin-              maggiore resistenza all’urto.
       dro  inferiore,  il  blocco  della  serratura           REINFORCEMENT BOLT-GUIDE
       superiore. (Serrature dipendenti)
                                                               Reinforcement bolt-guide for service
       MASTER BLOCK                                            cylinder to guarantee high resistance
       Screwing down the apposite screw as                     against crash.
       in the picture, when closing the lower
       cylinder you obtain the block of upper
       lock. (Interconnected locks)




            5

       OPZIONE FISSAGGIO                                       SISTEMA DI FISSAGGIO DEL  1   C          2
       CILINDRO DI SERVIZIO                                    CILINDRO SULLA SERRATURA                     T
       Una volta fissata l’aletta del cilindro                 1 Con attacco SECUREMME (C)
       alla  serratura  è  possibile  bloccare  il             2 Con vite in testa (T)
       cilindro dalla testata della porta.                     FIXING OF THE CYLINDER
       FIXING OF SERVICE CYLINDER                              ON THE LOCK
       When cylinder device fixed on the lock                  1 SECUREMME fixing cylinder (C)
       it is possible to block the cylinder from               2 With screw in the frontal (T)
       the lateral side of the door.


            T


       CAVALLOTTO DEL CILINDRO                                 CHIAVE DI SERVIZIO (T)
       Permette  di  fissare  il  protector                    Aziona il mezzo giro e 2 mandate ed è
       direttamente sulla serratura serie 25                   diversa per ogni serratura.
       senza estrarre il cuore a cilindro.                     SERVICE KEY  (T)
       SPECIAL CYLINDER DEVICE                                 It activates the half turn and 2 turns
       Special cylinder device that allows the                 and is different for each lock.
       fixing of the protector directly on lock
       Line  25  without  removal  of  cylinder
       heart.


       LINEA COPRICHIAVI CILINDRO                              LINEA COPRICHIAVI DOPPIA MAPPA
       Linea  di  coprichiavi  a  cilindro  con                Coprichiave di diversi colori che servono
       inserto  in  più  colori  che  servono  per             per differenziare le chiavi.
       differenziare le chiavi.
                                                               DOUBLE WARD KEY-COVERS LINE
       RANGE OF KEY-COVER                                      Key-cover in different colours to identify
       Complete range key-cover with                           keys.
       insert in more different colours
       to differentiate keys.




       MODELLI PORTA            DOOR MODELS
       Sulle serrature Securemme è possibile   Securemme locks can be arranged for
       realizzare il fissaggio con gli attacchi   lateral fixing (L).
       laterali (L).
                                   A             B             C              D             E              F
         SQ2501XDK2006
         SQ2501XDK2006
                                                                                              5870
                                                                                                              5870
                                                                                                              5870
                                                     5880          5880
                                                    5880           5880
                                                                                 5850           5850
                                                                                 5850           5850
                                                                   5850          5850           5850
                                                                   5850          5850           5850
                                                     5880
                                                    5880
                                                                                                               5870
                                                                                              5870            5870
