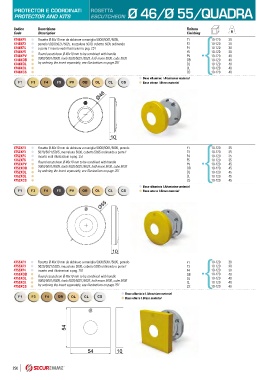

Page 252 - Catalogo MY 22 23

PROTECTOR E COORDINA
SERRATURE AD INFILARE A DOPPIA MAPPATI ROSETTA Ø 46/Ø 55/QUADRA
PROTECTOR AND KITS
DOUBLE WARD MORTICE LOCKSESCUTCHEON
Codice Descrizione Finitura
Code Description Finishing g
4746KF1 Rosetta Ø 46x10 mm da abbinare a maniglia 5000/5001/5005, F1 10-120 30
4746KF3 pomolo 5020/5021/5025, mezzaluna 5030, cubetto 5035 ordinando F3 10-120 30
4746KF4 a parte l’ inserto vedi illustrazioni a pag. 251 F4 10-120 30
4746KF5 F5 10-120 30
4746KPV Round escutcheon Ø 46x10 mm to be combined with handle PV * 10-120 40
4746KOB 5000/5001/5005, knob 5020/5021/5025, half-moon 5030, cube 5035 OB 10-120 40
4746KOL by ordering the insert separately, see illustrations on page 251 OL 10-120 40
4746KCL CL 10-120 40
4746KCS CS 10-120 40
Base alluminio | Aluminium material
F1 F3 F4 F5 PV OB OL CL CS Base ottone | Brass material

4752XF1 Rosetta Ø 46x10 mm da abbinare a maniglia 5000/5001/5005, pomolo F1 10-120 35
4752XF3 5020/5021/5025, mezzaluna 5030, cubetto 5035 ordinando a parte l’ F3 10-120 35
4752XF4 inserto vedi illustrazioni a pag. 251 F4 10-120 35
4752XF5 F5 10-120 35
4752XPV Round escutcheon Ø 46x10 mm to be combined with handle PV * 10-120 45
4752XOB 5000/5001/5005, knob 5020/5021/5025, half-moon 5030, cube 5035 OB 10-120 45
4752XOL by ordering the insert separately, see illustrations on page 251 OL 10-120 45
4752XCL CL 10-120 45
4752XCS CS 10-120 45
Base alluminio | Aluminium material
F1 F3 F4 F5 PV OB OL CL CS Base ottone | Brass material

4755XF1 Rosetta Ø 46x10 mm da abbinare a maniglia 5000/5001/5005, pomolo F1 10-120 30
4755XF3 5020/5021/5025, mezzaluna 5030, cubetto 5035 ordinando a parte l’ F3 10-120 30
4755XF4 inserto vedi illustrazioni a pag. 251 F4 10-120 30
4755XOB OB * 10-120 40
4755XOL Round escutcheon Ø 46x10 mm to be combined with handle OL 10-120 40
4755XCL 5000/5001/5005, knob 5020/5021/5025, half-moon 5030, cube 5035 CL 10-120 40
4755XCS by ordering the insert separately, see illustrations on page 251 CS 10-120 40
Base alluminio | Aluminium material
F1 F3 F4 OB OL CL CS Base ottone | Brass material

250
