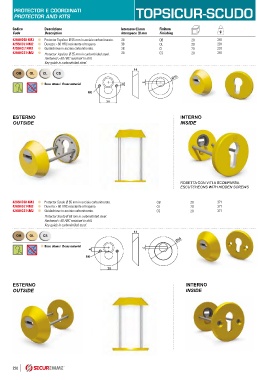

Page 230 - Catalogo MY 22 23

PROTECTOR E COORDINATI TOPSICUR-SCUDO
PROTECTOR AND KITS

Codice Descrizione Interasse (I) mm Finitura
Code Description Interspace (I) mm Finishing g
4255KOB14M2 Protector Topsicur Ø 55 mm in acciaio carbonitrurato. 38 OB 20 291
4255KOL14M2 Durezza > 60 HRC resistente al trapano. 38 OL 20 291
4255KCL14M2 Guidachiave in acciaio carbonitrurato. 38 CL 20 291
4255KCS14M2 Protector Topsicur Ø 55 mm in carbonitrided steel. 38 CS 20 291
Hardened > 60 HRC resistant to drill.
Key-guide in carbonitrided steel.

OB OL CL CS

Base ottone | Brass material
A
Y

ESTERNO INTERNO
OUTSIDE INSIDE

ROSETTA CON VITI A SCOMPARSA
ESCUTCHEONS WITH HIDDEN SCREWS

4265KOB14M2 Protector Scudo Ø 65 mm in acciaio carbonitrurato. OB 20 371
4265KOL14M2 Durezza > 60 HRC resistente al trapano. OL 20 371
4265KCS14M2 Guidachiave in acciaio carbonitrurato. CS 20 371
Protector Scudo Ø 65 mm in carbonitrided steel.
Hardened > 60 HRC resistant to drill.
Key-guide in carbonitrided steel.

OB OL CS

Base ottone | Brass material
A
Y

ESTERNO INTERNO
OUTSIDE INSIDE

228
