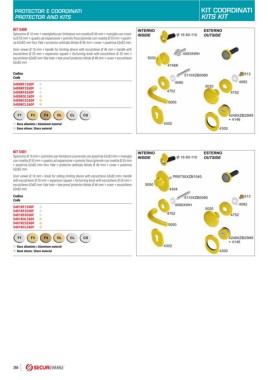

PROTECTOR E COORDINATI KIT COORDINATI
PROTECTOR AND KITS KITS KIT

KIT 5400 INTERNO ESTERNO
Spioncino Ø 16 mm + maniglietta per limitatore con rosetta Ø 46 mm + maniglia con roset- INSIDE Ø 16 60-110 OUTSIDE
ta Ø 55 mm + quadro ad espansione + pomolo fisso/girevole con rosetta Ø 55 mm + piastri-
na 62x82 mm foro Yale + protector antitubo blindo Ø 46 mm + cover + piastrina 62x82 mm.
Door viewer Ø 16 mm + handle for limiting device with escutcheon Ø 46 mm + handle with
escutcheon Ø 55 mm + expansion square + fix/turning knob with escutcheon Ø 55 mm + 4093XWH
escutcheon 62x82 mm Yale hole + tear-proof protector blindo Ø 46 mm + cover + escutcheon 5030
62x82 mm.
4746K

Codice 5110XZB0080 513
Code
5400KF126DF 4090 4092
5400KF326DF 5020
5400KF426DF 4752 4752
5400KOL26DF
5400KCS26DF 5000
5400KCL26DF

F1 F3 F4 OL CL CS 4246XZB25M5
+ 4146
Base alluminio | Aluminium material 4302
Base ottone | Brass material 4300

KIT 5401 INTERNO ESTERNO
Spioncino Ø 16 mm + pomolino per limitatore scorrevole con piastrina 62x82 mm + maniglia INSIDE Ø 16 60-110 OUTSIDE
con rosetta Ø 55 mm + quadro ad espansione + pomolo fisso/girevole con rosetta Ø 55 mm
+ piastrina 62x82 mm foro Yale + protector antitubo blindo Ø 46 mm + cover + piastrina
62x82 mm.
Door viewer Ø 16 mm + knob for sliding limiting device with escutcheon 62x82 mm+ handle PR5730XZB1040
with escutcheon Ø 55 mm + expansion square + fix/turning knob with escutcheon Ø 55 mm +
escutcheon 62x82 mm Yale hole + tear-proof protector blindo Ø 46 mm + cover + escutcheon 5050
62x82 mm. 4304
Codice 5110XZB0080 513
Code
5401KF126DF 4090XWH 4092
5401KF326DF 5020
5401KF426DF 4752 4752
5401KOL26DF
5401KCS26DF 5000
5401KCL26DF

F1 F3 F4 OL CL CS 4246XZB25M5
+ 4146
Base alluminio | Aluminium material 4302
Base ottone | Brass material 4300

284
