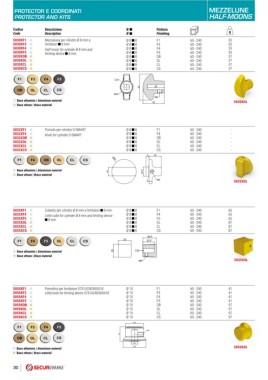

Page 284 - Catalogo Securemme

PROTECTOR E COORDINATI MEZZELUNE
PROTECTOR AND KITS HALF-MOONS

Codice Descrizione Ø Finitura
Code Description Ø Finishing g
5030XF1 Mezzaluna per cilindro Ø 8 mm e Ø 8 8 F1 60 - 240 35
5030XF3 limitatori 8 mm Ø 8 8 F3 60 - 240 35
5030XF4 Half moon for cylinder Ø 8 mm and Ø 8 8 F4 60 - 240 35
5030XF5 limiting device 8 mm Ø 8 8 F5 60 - 240 35
5030XOB Ø 8 8 OB 60 - 240 57
5030XOL Ø 8 8 OL 60 - 240 57
5030XCL Ø 8 8 CL 60 - 240 57
5030XCS Ø 8 8 CS 60 - 240 57

F1 F3 F4 F5 8

42 26
OB OL CL CS
Ø20
M6
Base alluminio | Aluminium material 33 5030XOL
Base ottone | Brass material

5032XF1 Pomolo per cilindro D-SMART Ø 8 8 F1 60 - 240 -
5032XF4 Knob for cylinder D-SMART Ø 8 8 F4 60 - 240 -
5032XOB Ø 8 8 OB 60 - 240 -
5032XOL Ø 8 8 OL 60 - 240 -
5032XCL Ø 8 8 CL 60 - 240 -
5032XCS Ø 8 8 CS 60 - 240 -
5 20
F1 F4 OB OL CL CS Ø40
Base alluminio | Aluminium material 14 15
Base ottone | Brass material
5 M6 5032XOL

5035XF1 Cubetto per cilindro Ø 8 mm e limitatori 8 mm Ø 8 8 F1 60 - 240 65
5035XF4 Little cube for cylinder Ø 8 mm and limiting device Ø 8 8 F4 60 - 240 65
5035XF5 8 mm Ø 8 8 F5 60 - 240 65
5035XOL Ø 8 8 OL 60 - 240 87
5035XCL Ø 8 8 CL 60 - 240 87
5035XCS Ø 8 8 CS 60 - 240 87

F1 F4 F5 OL CL CS

Base alluminio | Aluminium material
Base ottone | Brass material
5035XOL

5050XF1 Pomolino per limitatore 5731UCR03XXX18 Ø 10 F1 60 - 240 41
5050XF3 Little knob for limiting device 5731UCR03XXX18 Ø 10 F3 60 - 240 41
5050XF4 Ø 10 F4 60 - 240 41
5050XF5 Ø 10 F5 60 - 240 41
5050XOB Ø 10 OB 60 - 240 97
5050XOL Ø 10 OL 60 - 240 97
5050XCL Ø 10 CL 60 - 240 97
5050XCS Ø 10 CS 60 - 240 97

F1 F3 F4 F5

OB OL CL CS

Base alluminio | Aluminium material 5050XOL
Base ottone | Brass material
