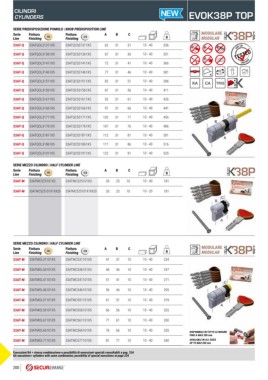

Page 202 - Catalogo Securemme

CILINDRI NEW
CYLINDERS EVOK38P TOP

SERIE PREDISPOSIZIONE POMOLO | KNOB PREDISPOSITION LINE
Serie Finitura Finitura A B C MODULARE
Line Finishing OL Finishing CS g MODULAR
33AT-Q 33ATQOL31311X5 33ATQCS31311X5 62 31 31 10 - 40 336
33AT-Q 33ATQOL31361X5 33ATQCS31361X5 67 31 36 10 - 40 351

33AT-Q 33ATQOL31411X5 33ATQCS31411X5 72 31 41 10 - 40 366
33AT-Q 33ATQOL31461X5 33ATQCS31461X5 77 31 46 10 - 40 381
K
33AT-Q 33ATQOL31511X5 33ATQCS31511X5 82 31 51 10 - 40 396
KA CA TRIS
33AT-Q 33ATQOL31561X5 33ATQCS31561X5 87 31 56 10 - 40 411

33AT-Q 33ATQOL31611X5 33ATQCS31611X5 92 31 61 10 - 40 426
33AT-Q 33ATQOL31661X5 33ATQCS31661X5 97 31 66 10 - 40 441

33AT-Q 33ATQOL31711X5 33ATQCS31711X5 102 31 71 10 - 40 456 C
B
33AT-Q 33ATQOL31761X5 33ATQCS31761X5 107 31 76 10 - 40 486

33AT-Q 33ATQOL31811X5 33ATQCS31811X5 112 31 81 10 - 40 501
A
33AT-Q 33ATQOL31861X5 33ATQCS31861X5 117 31 86 10 - 40 516

33AT-Q 33ATQOL31911X5 33ATQCS31911X5 122 31 91 10 - 40 525

SERIE MEZZO CILINDRO | HALF CYLINDER LINE
Serie Finitura Finitura A B C
Line Finishing OL Finishing CS g
33AT-M 33ATMCS25101X3 33ATMCS25101X3 35 25 10 10 - 40 181

33AT-M 33ATMCS25101X1XX20 33ATMCS25101X1XX20 35 25 10 10 - 20 181

SERIE MEZZO CILINDRO | HALF CYLINDER LINE
Serie Finitura Finitura A B C MODULARE
Line Finishing OL Finishing CS g MODULAR
33AT-M 33ATMOL31101X5 33ATMCS31101X5 41 31 10 10 - 40 234

33AT-M 33ATMOL36101X5 33ATMCS36101X5 46 36 10 10 - 40 247

33AT-M 33ATMOL41101X5 33ATMCS41101X5 51 41 10 10 - 40 271
C
B
33AT-M 33ATMOL46101X5 33ATMCS46101X5 56 46 10 10 - 40 295
33AT-M 33ATMOL51101X5 33ATMCS51101X5 61 51 10 10 - 40 319
A
33AT-M 33ATMOL56101X5 33ATMCS56101X5 66 56 10 10 - 40 325

33AT-M 33ATMOL61101X5 33ATMCS61101X5 71 61 10 10 - 40 330

33AT-M 33ATMOL66101X5 33ATMCS66101X5 76 66 10 10 - 40 335 DISPONIBILE IN TUTTE LE MISURE
FINO A MAX 200 mm
33AT-M 33ATMOL71101X5 33ATMCS71101X5 81 71 10 10 - 40 340 AVAILABLE IN ALL SIZES
UP TO MAX 200 mm
Esecuzioni KA = stessa combinazione e possibilità di esecuzioni speciali consultabili a pag. 234
KA executions= cylinders with same combination; possibility of special executions at page 234
