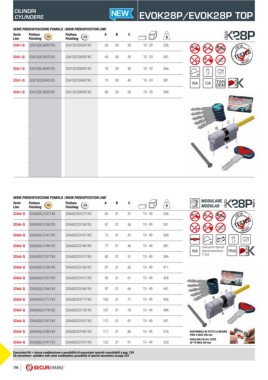

Page 196 - Catalogo Securemme

CILINDRI NEW
CYLINDERS EVOK28P/EVOK28P TOP

SERIE PREDISPOSIZIONE POMOLO | KNOB PREDISPOSITION LINE
Serie Finitura Finitura A B C
Line Finishing OL Finishing CS g
32A1-Q 32A1QOL30301X5 32A1QCS30301X5 60 30 30 10 - 20 336

32A1-Q 32A1QOL30351X5 32A1QCS30351X5 65 30 35 10 - 20 351

32A1-Q 32A1QOL30401X5 32A1QCS30401X5 70 30 40 10 - 20 366
K
32A1-Q 32A1QOL30451X5 32A1QCS30451X5 75 30 45 10 - 20 381 TAN
KA CA
DEM
32A1-Q 32A1QOL30501X5 32A1QCS30501X5 80 30 50 10 - 20 396

-

-

-

-

-

-

-

SERIE PREDISPOSIZIONE POMOLO | KNOB PREDISPOSITION LINE
Serie Finitura Finitura A B C MODULARE
Line Finishing OL Finishing CS g MODULAR
32AA-Q 32AAQOL31311X5 32AAQCS31311X5 62 31 31 10 - 40 336

32AA-Q 32AAQOL31361X5 32AAQCS31361X5 67 31 36 10 - 40 351

32AA-Q 32AAQOL31411X5 32AAQCS31411X5 72 31 41 10 - 40 366

K
32AA-Q 32AAQOL31461X5 32AAQCS31461X5 77 31 46 10 - 40 381 Esecuzioni speciali
KA Special executions TRIS
32AA-Q 32AAQOL31511X5 32AAQCS31511X5 82 31 51 10 - 40 396 P. 234

32AA-Q 32AAQOL31561X5 32AAQCS31561X5 87 31 56 10 - 40 411

32AA-Q 32AAQOL31611X5 32AAQCS31611X5 92 31 61 10 - 40 426

32AA-Q 32AAQOL31661X5 32AAQCS31661X5 97 31 66 10 - 40 441
C
32AA-Q 32AAQOL31711X5 32AAQCS31711X5 102 31 71 10 - 40 456 B

32AA-Q 32AAQOL31761X5 32AAQCS31761X5 107 31 76 10 - 40 486
A
32AA-Q 32AAQOL31811X5 32AAQCS31811X5 112 31 81 10 - 40 501

32AA-Q 32AAQOL31861X5 32AAQCS31861X5 117 31 86 10 - 40 516 DISPONIBILE IN TUTTE LE MISURE
FINO A MAX 200 mm
AVAILABLE IN ALL SIZES
32AA-Q 32AAQOL31911X5 32AAQCS31911X5 122 31 91 10 - 40 525 UP TO MAX 200 mm
Esecuzioni KA = stessa combinazione e possibilità di esecuzioni speciali consultabili a pag. 234
KA executions= cylinders with same combination; possibility of special executions at page 234

194
