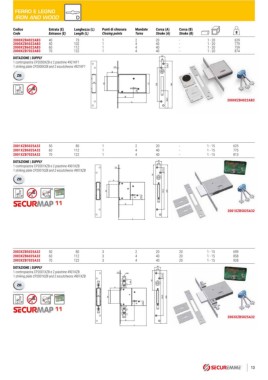

Page 15 - Catalogo Securemme

FERRO E LEGNO
IRON AND WOOD D

Codice Entrata (E) Lunghezza (L) Punti di chiusura Mandate Corsa (A) Corsa (B)
Code Entrance (E) Length (L) Closing points Turns Stroke (A) Stroke (B) g
2000XZB4022AB3 40 73 1 2 20 - 1 - 20 629
2000XZB5022AB3 50 102 1 4 40 - 1 - 20 779
2000XZB6022AB3 60 112 1 4 40 - 1 - 20 759
2000XZB7022AB3 70 122 1 4 40 - 1 - 20 874
DOTAZIONE | SUPPLY
1 contropiastra CP2000XZB e 2 piastrine 4921KF1
1 striking plate CP2000XZB and 2 escutcheons 4921KF1
A
ZB

P X
E
2000XZB4022AB3
L

2001XZB5025A32 50 80 1 2 20 - 1 - 15 625
2001XZB6025A32 60 112 1 4 40 - 1 - 15 775
2001XZB7025A32 70 122 1 4 40 - 1 - 15 813
DOTAZIONE | SUPPLY 25 13
1 contropiastra CP2001XZB e 2 piastrine 4901XZB 2,5
1 striking plate CP2001XZB and 2 escutcheons 4901XZB 21,5
82
ZB A

® 18
55 154,5 220
P X S 19,5
9
E
2001XZB5025A32
L

2003XZB5025A32 50 80 3 2 20 20 1 - 15 699
2003XZB6025A32 60 112 3 4 40 20 1 - 15 858
2003XZB7025A32 70 122 3 4 40 20 1 - 15 928
DOTAZIONE | SUPPLY 25
13
1 contropiastra CP2001XZB e 2 piastrine 4901XZB 2,5 M8
1 striking plate CP2001XZB and 2 escutcheons 4901XZB 21,5
82
20
ZB
A
® 18
55 154,5 220
P X S 19,5
9
2003XZB5025A32
E
L

13
