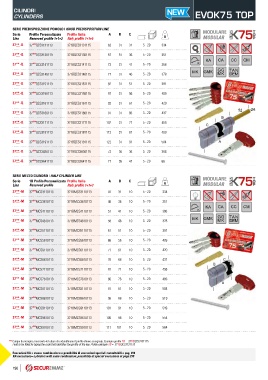

Page 198 - Catalogo MY 22 23

CILINDRI NEW
CYLINDERS EVOK75 TOP

SERIE PREDISPOSIZIONE POMOLO | KNOB PREDISPOSITION LINE
Serie Profilo Personalizzato Profilo Italia A B C g MODULARE
Line Reserved profile 1+1+3 Italy profile 1+1+5 MODULAR
**
**
37__-Q 37 QCS3131113 371BQCS3131115 62 31 31 5 - 20 334
37__-Q 37 QCS3136113 371BQCS3136115 67 31 36 5 - 20 351
**
**
KA CA CC CM
**
37__-Q 37 QCS3141113 371BQCS3141115 72 31 41 5 - 20 366 K
**
MK GMK GG TAN
37__-Q 37 QCS3146113 371BQCS3146115 77 31 46 5 - 20 378 MK DEM
**
**
**
37__-Q 37 QCS3151113 371BQCS3151115 82 31 51 5 - 20 391
**
**
**
37__-Q 37 QCS3156113 371BQCS3156115 87 31 56 5 - 20 409
37__-Q 37 QCS3161113 371BQCS3161115 92 31 61 5 - 20 420
**
**
52 Ø8
37__-Q 37 QCS3166113 371BQCS3166115 97 31 66 5 - 20 437
**
**
B
**
**
37__-Q 37 QCS3171113 371BQCS3171115 102 31 71 5 - 20 458
C
**
37__-Q 37 QCS3181113 371BQCS3181115 112 31 81 5 - 20 489
**
37__-Q 37 QCS3191113 371BQCS3191115 122 31 91 5 - 20 504 A
**
**
**
**
37__-Q 37 QCS3636113 371BQCS3636115 72 36 36 5 - 20 366
**
**
37__-Q 37 QCS3641113 371BQCS3641115 77 36 41 5 - 20 66
SERIE MEZZO CILINDRO | HALF CYLINDER LINE
Serie 1B Profilo Personalizzato Profilo Italia A B C g MODULARE
Line Reserved profile Italy profile 1+1+3 MODULAR
37__-M 37 MCS3110113 371BMCS3110113 41 31 10 5 - 20 334
**
**
**
37__-M 37 MCS3610113 371BMCS3610113 46 36 10 5 - 20 351
**
KA CA CC CM
37__-M 37 MCS4110113 371BMCS4110113 51 41 10 5 - 20 366 K
**
**
MK GMK GG TAN
37__-M 37 MCS4610113 371BMCS4610113 56 46 10 5 - 20 378 MK DEM
**
**
**
37__-M 37 MCS5110113 371BMCS5110113 61 51 10 5 - 20 391
**
**
**
37__-M 37 MCS5610113 371BMCS5610113 66 56 10 5 - 20 409
**
**
37__-M 37 MCS6110113 371BMCS6110113 71 61 10 5 - 20 420
**
**
37__-M 37 MCS6610113 371BMCS6610113 76 66 10 5 - 20 437 C
B
37__-M 37 MCS7110113 371BMCS7110113 81 71 10 5 - 20 458
**
**
**
37__-M 37 MCS7610113 371BMCS7610113 86 76 10 5 - 20 489
**
A
37__-M 37 MCS8110113 371BMCS8110113 91 81 10 5 - 20 504
**
**
**
37__-M 37 MCS8610113 371BMCS8610113 96 86 10 5 - 20 519
**
**
**
37__-M 37 MCS9110113 371BMCS9110113 101 91 10 5 - 20 549
37__-M 37 MCS9610113 371BMCS9610113 106 96 10 5 - 20 554
**
**
**
**
37__-M 37 MCS9910113 371BMCS9910113 111 101 10 5 - 20 564
** Campo da riempire, inserendo le lettere che identificano il profilo chiave assegnato. Esempio profilo 1B = 371BQCS3131115
Field to be filled by typing the code that identifies the profile of the key. Profile example 1B = 371BQCS3131115
Esecuzioni KA = stessa combinazione e possibilità di esecuzioni speciali consultabili a pag. 210
KA executions= cylinders with same combination; possibility of special executions at page 210
196
