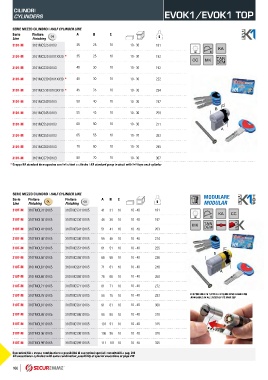

P. 168
CILINDRI
CYLINDERS EVOK1/EVOK1 TOP
SERIE MEZZO CILINDRO | HALF CYLINDER LINE
Serie Finitura A B C g
Line Finishing CS
3101-M 3101MCS25101X3 35 25 10 10 - 30 181
KA
K
3101-M 3101MCS25101X1XX30 * 35 25 10 10 - 30 192
CC MK TAN
DEM
3101-M 3101MCS30101X3 40 30 10 10 - 30 192
3101-M 3101MCS30101X1XX30 * 40 30 10 10 - 30 222
3101-M 3101MCS35101X3XX10 * 45 35 10 10 - 30 234
3101-M 3101MCS40101X3 50 40 10 10 - 30 247
C
B
3101-M 3101MCS45101X3 55 45 10 10 - 30 259
3101-M 3101MCS50101X3 60 50 10 10 - 30 271
A
3101-M 3101MCS55101X3 65 55 10 10 - 20 283
3101-M 3101MCS60101X3 70 60 10 10 - 20 295
3101-M 3101MCS70101X3 80 70 10 10 - 30 307
* Gruppo KA standard da magazzino con 1+1 chiavi a cilindro | KA standard group in stock with 1+1 keys each cylinder
SERIE MEZZO CILINDRO | HALF CYLINDER LINE MODULARE
Serie Finitura OL Finitura A B C g
Line Finishing Finishing CS MODULAR
310T-M 310TMOL31101X5 310TMCS31101X5 41 31 10 10 - 40 181
KA CC
K
310T-M 310TMOL36101X5 310TMCS36101X5 46 36 10 10 - 40 192
MK TAN
DEM
310T-M 310TMOL41101X5 310TMCS41101X5 51 41 10 10 - 40 203
310T-M 310TMOL46101X5 310TMCS46101X5 56 46 10 10 - 40 214
310T-M 310TMOL51101X5 310TMCS51101X5 61 51 10 10 - 40 225 C
B
310T-M 310TMOL56101X5 310TMCS56101X5 66 56 10 10 - 40 236
310T-M 310TMOL61101X5 310TMCS61101X5 71 61 10 10 - 40 248
A
310T-M 310TMOL66101X5 310TMCS66101X5 76 66 10 10 - 40 260
310T-M 310TMOL71101X5 310TMCS71101X5 81 71 10 10 - 40 272
310T-M 310TMOL76101X5 310TMCS76101X5 86 76 10 10 - 40 293 DISPONIBILE IN TUTTE LE MISURE FINO A MAX 200
AVAILABLE IN ALL SIZES UP TO MAX 200
310T-M 310TMOL81101X5 310TMCS81101X5 91 81 10 10 - 40 300
310T-M 310TMOL86101X5 310TMCS86101X5 96 86 10 10 - 40 310
310T-M 310TMOL91101X5 310TMCS91101X5 101 91 10 10 - 40 315
310T-M 310TMOL96101X5 310TMCS96101X5 106 96 10 10 - 40 320
310T-M 310TMOL99101X5 310TMCS99101X5 111 101 10 10 - 40 325
Esecuzioni KA = stessa combinazione e possibilità di esecuzioni speciali consultabili a pag. 210
KA executions= cylinders with same combination; possibility of special executions at page 210
