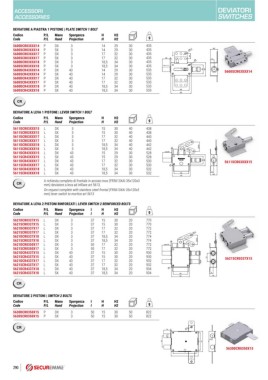

Page 292 - Catalogo Securemme

ACCESSORI DEVIATORI
ACCESSORIES SWITCHES

DEVIATORE A PIASTRA 1 PISTONE | PLATE SWITCH 1 BOLT
Codice P/L Mano Sporgenza H H2
Code P/L Hand Projection H H2 g
5600DCR03XXX14 P DX 3 14 29 30 435
5600SCR03XXX14 P SX 3 14 29 30 435
5600DCR03XXX17 P DX 3 17 32 30 435
5600SCR03XXX17 P SX 3 17 32 30 435
5600DCR03XXX18 P DX 3 18,5 34 30 435
5600SCR03XXX18 P SX 3 18,5 34 30 435
5600DCR43XXX14 P DX 43 14 29 30 533 5600SCR03XXX14
5600SCR43XXX14 P SX 43 14 29 30 533
5600DCR43XXX17 P DX 43 17 32 30 533
5600SCR43XXX17 P SX 43 17 32 30 533
5600DCR43XXX18 P DX 43 18,5 34 30 533
5600SCR43XXX18 P SX 43 18,5 34 30 533

CR

DEVIATORE A LEVA 1 PISTONE | LEVER SWITCH 1 BOLT
Codice P/L Mano Sporgenza H H2
Code P/L Hand Projection H H2 g
5611DCR03XXX15 L DX 3 15 30 40 438
5611SCR03XXX15 L SX 3 15 30 40 438
5611DCR03XXX17 L DX 3 17 32 40 440
5611SCR03XXX17 L SX 3 17 32 40 440
5611DCR03XXX18 L DX 3 18,5 34 40 442
5611SCR03XXX18 L SX 3 18,5 34 40 442
5611DCR43XXX15 L DX 43 15 29 30 528
5611SCR43XXX15 L SX 43 15 29 30 528
5611DCR43XXX17 L DX 43 17 32 30 530 5611SCR03XXX15
5611SCR43XXX17 L SX 43 17 32 30 530
5611DCR43XXX18 L DX 43 18,5 34 30 532
5611SCR43XXX18 L SX 43 18,5 34 30 532
A richiesta completo di frontale in acciaio inox (FR5613XAI 35x120x3
CR mm) deviatore a leva ad infilare art 5613.
On request complete with stainless steel frontal (FR5613XAI 35x120x3
mm) lever switch to mortice art 5613

DEVIATORE A LEVA 2 PISTONI RINFORZATI | LEVER SWITCH 2 REINFORCED BOLTS
Codice P/L Mano Sporgenza I H H2
Code P/L Hand Projection I H H2 g
5621DCR0337X15 L DX 3 37 15 30 20 770
5621SCR0337X15 L SX 3 37 15 30 20 770
5621DCR0337X17 L DX 3 37 17 32 20 772
5621SCR0337X17 L SX 3 37 17 32 20 772
5621DCR0337X18 L DX 3 37 18,5 34 20 774
5621SCR0337X18 L SX 3 37 18,5 34 20 774
5621DCR0350X17 L DX 3 50 17 32 20 772
5621SCR0350X17 L SX 3 50 17 32 20 772
5621DCR4337X15 L DX 43 37 15 30 20 930
5621SCR4337X15 L SX 43 37 15 30 20 930 5621SCR0337X15
5621DCR4337X17 L DX 43 37 17 32 20 932
5621SCR4337X17 L SX 43 37 17 32 20 932
5621DCR4337X18 L DX 43 37 18,5 34 20 934
5621SCR4337X18 L SX 43 37 18,5 34 20 934

CR

DEVIATORE 2 PISTONI | SWITCH 2 BOLTS
Codice P/L Mano Sporgenza I H H2
Code P/L Hand Projection I H H2 g
5630DCR0350X15 P DX 3 50 15 30 50 822
5630SCR0350X15 P SX 3 50 15 30 50 822

CR 8,2
30 3
18
15
50 77 90
5630DCR0350X15
102
102

290
