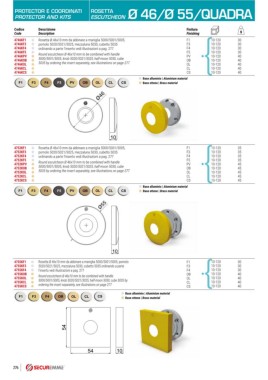

P. 278
PROTECTOR E COORDINA
SERRATURE AD INFILARE A DOPPIA MAPPATI ROSETTA Ø 46/Ø 55/QUADRA
PROTECTOR AND KITS
DOUBLE WARD MORTICE LOCKSESCUTCHEON
Codice Descrizione Finitura
Code Description Finishing g
4746KF1 Rosetta Ø 46x10 mm da abbinare a maniglia 5000/5001/5005, F1 10-120 30
4746KF3 pomolo 5020/5021/5025, mezzaluna 5030, cubetto 5035 F3 10-120 30
4746KF4 ordinando a parte l’inserto vedi illustrazioni a pag. 277 F4 10-120 30
4746KF5 Round escutcheon Ø 46x10 mm to be combined with handle F5 10-120 30
4746KPV PV * 10-120 40
4746KOB 5000/5001/5005, knob 5020/5021/5025, half-moon 5030, cube OB 10-120 40
4746KOL 5035 by ordering the insert separately, see illustrations on page 277 OL 10-120 40
4746KCL CL 10-120 40
4746KCS CS 10-120 40
Base alluminio | Aluminium material
F1 F3 F4 F5 PV OB OL CL CS Base ottone | Brass material
4752KF1 Rosetta Ø 46x10 mm da abbinare a maniglia 5000/5001/5005, F1 10-120 35
4752KF3 pomolo 5020/5021/5025, mezzaluna 5030, cubetto 5035 F3 10-120 35
4752KF4 ordinando a parte l’inserto vedi illustrazioni a pag. 277 F4 10-120 35
4752KF5 F5 10-120 35
4752KPV Round escutcheon Ø 46x10 mm to be combined with handle PV * 10-120 45
4752KOB 5000/5001/5005, knob 5020/5021/5025, half-moon 5030, cube OB 10-120 45
4752KOL 5035 by ordering the insert separately, see illustrations on page 277 OL 10-120 45
4752KCL CL 10-120 45
4752KCS CS 10-120 45
Base alluminio | Aluminium material
F1 F3 F4 F5 PV OB OL CL CS Base ottone | Brass material
4755KF1 Rosetta Ø 46x10 mm da abbinare a maniglia 5000/5001/5005, pomolo F1 10-120 30
4755KF3 5020/5021/5025, mezzaluna 5030, cubetto 5035 ordinando a parte F3 10-120 30
4755KF4 l’inserto vedi illustrazioni a pag. 277 F4 10-120 30
4755KOB Round escutcheon Ø 46x10 mm to be combined with handle OB * 10-120 40
4755KOL OL 10-120 40
4755KCL 5000/5001/5005, knob 5020/5021/5025, half-moon 5030, cube 5035 by CL 10-120 40
4755KCS ordering the insert separately, see illustrations on page 277 CS 10-120 40
Base alluminio | Aluminium material
F1 F3 F4 OB OL CL CS Base ottone | Brass material
