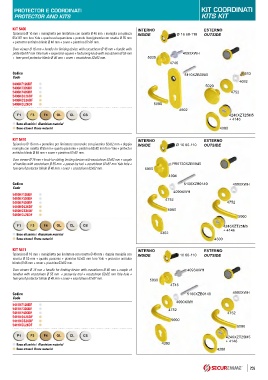

Page 261 - Catalogo MY 22 23

PROTECTOR E COORDINATI KIT COORDINATI
PROTECTOR AND KITS KITS KIT

KIT 5406 INTERNO ESTERNO
Spioncino Ø 16 mm + maniglietta per limitatore con rosetta Ø 46 mm + maniglia con placca INSIDE Ø 16 60-110 OUTSIDE
65x187 mm foro Yale + quadro ad espansione + pomolo fisso/girevole con rosetta Ø 55 mm
+ protector antitubo blindo Ø 46 mm + cover + piastrina 62x82 mm.
Door viewer Ø 16 mm + handle for limiting device with escutcheon Ø 46 mm + handle with
plate 65x187 mm Yale hole + expansion square + fix/turning knob with escutcheon Ø 55 mm 4093XWH
+ tear-proof protector blindo Ø 46 mm + cover + escutcheon 62x82 mm. 5030
4746

Codice 5110XZB0080 513
Code
4092
5406KF126DF 5020
5406KF326DF
5406KF426DF 4752
5406KOL26DF
5406KCS26DF
5406KCL26DF 5000
4502
F1 F3 F4 OL CL CS 4246XZT25M5
+ 4146
Base alluminio | Aluminium material
Base ottone | Brass material 4300

KIT 5410 INTERNO ESTERNO
Spioncino Ø 16 mm + pomolino per limitatore scorrevole con piastrina 62x82 mm + doppia INSIDE Ø 16 60-110 OUTSIDE
maniglia con rosetta Ø 55 mm + quadro passante + piastrina 62x82 mm foro Yale + protector
antitubo blindo Ø 46 mm + cover + piastrina 62x82 mm.
Door viewer Ø 16 mm + knob for sliding limiting device with escutcheon 62x82 mm + couple
of handles with escutcheon Ø 55 mm + passer-by tool + escutcheon 62x82 mm Yale hole + PR5730XZB1040
tear-proof protector blindo Ø 46 mm + cover + escutcheon 62x82 mm. 5050
4304
Codice 5100XZB0140 4090XWH
Code
4090XWH
5410KF126DF
5410KF326DF 4752
5410KF426DF 4752
5410KOL26DF
5410KCS26DF 5000
5410KCL26DF 5000

F1 F3 F4 OL CL CS 4246XZT25M5
+ 4146
Base alluminio | Aluminium material 4302
Base ottone | Brass material 4300
KIT 5411 INTERNO ESTERNO
Spioncino Ø 16 mm + maniglietta per limitatore con rosetta Ø 46 mm + doppia maniglia con INSIDE Ø 16 60-110 OUTSIDE
rosetta Ø 55 mm + quadro passante + piastrina 62x82 mm foro Yale + protector antitubo
blindo Ø 46 mm + cover + piastrina 62x82 mm.
Door viewer Ø 16 mm + handle for limiting device with escutcheon Ø 46 mm + couple of 4093XWH
handles with escutcheon Ø 55 mm + passer-by tool + escutcheon 62x82 mm Yale hole +
tear-proof protector blindo Ø 46 mm + cover + escutcheon 62x82 mm. 5030
4746

Codice 5100XZB0140 4090XWH
Code
4090XWH
5411KF126DF
5411KF326DF 4752
5411KF426DF 4752
5411KOL26DF
5411KCS26DF 5000
5411KCL26DF 5000

F1 F3 F4 OL CL CS 4246XZT25M5
+ 4146
Base alluminio | Aluminium material 4302
Base ottone | Brass material 4300

259
